Build an automation

An automation is an event-driven workflow: a trigger starts a run, then actions, conditions, and flow nodes run in order. It is not a shipping rule. A rule is the reusable carrier/product setup; an automation can apply that rule when a shipment is created. Walkthrough context: Shipping rules. Status dictionaries: Automations overview. If a run never starts: Automation not triggering.

Automations live in the client dashboard only. They are not on the public OpenAPI tag list. The builder is a full-viewport editor — no sidebar — and is hidden on mobile.

Where it lives

Sidebar Automations (/{org}/dashboard/automations), after Carrier Requests. Click a row (or Edit) to open /{org}/dashboard/automations/:id.

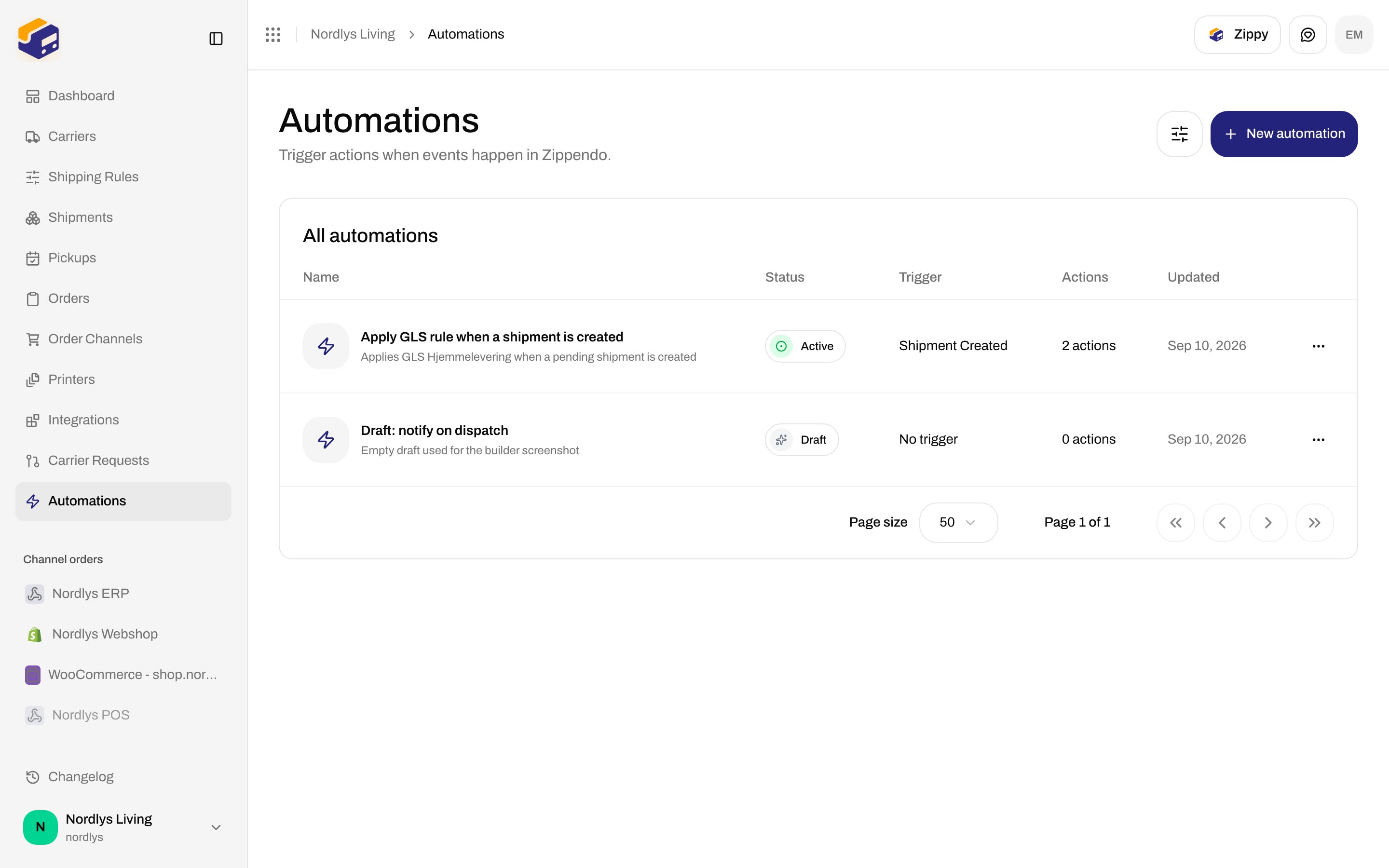

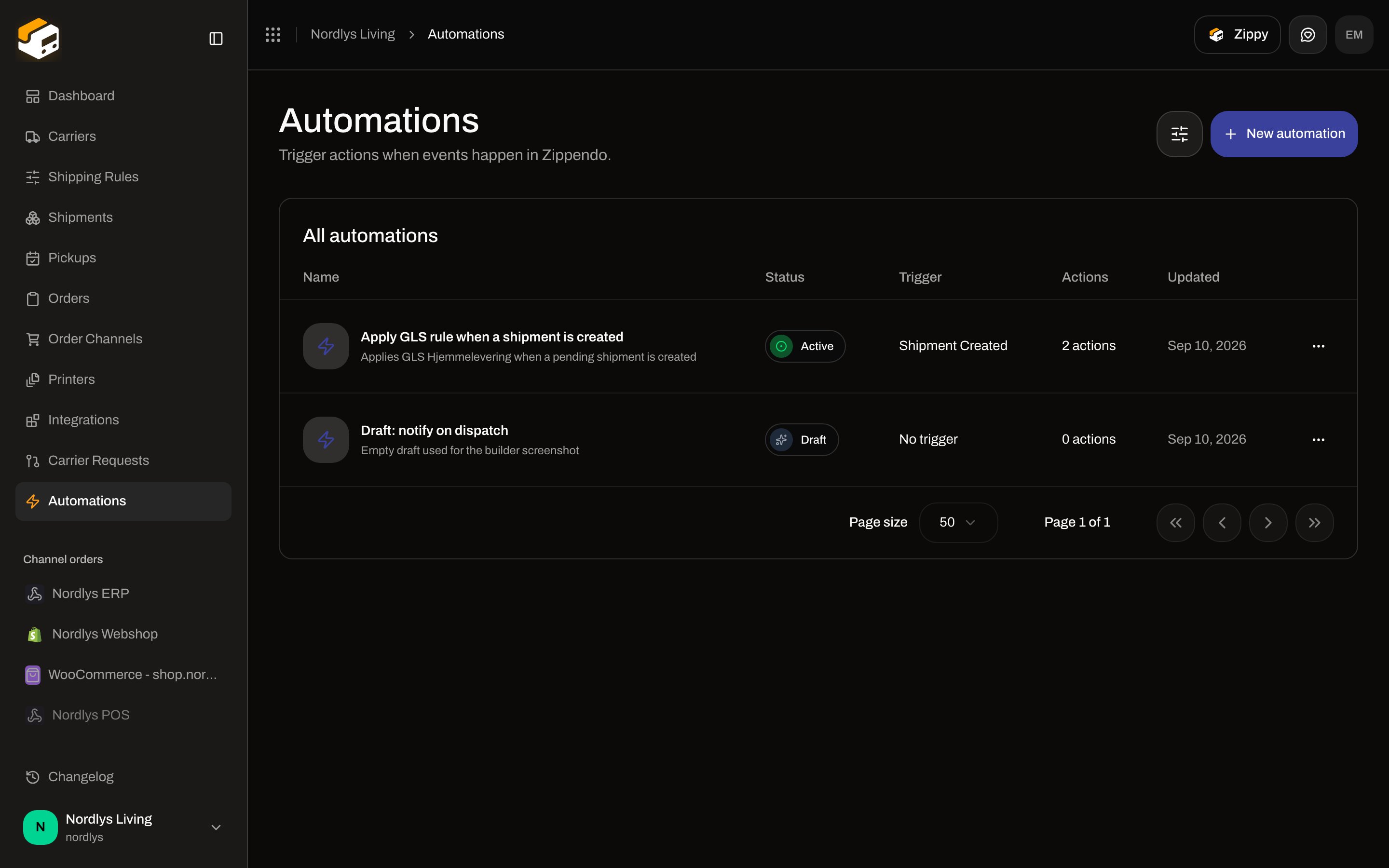

Automations list titled Automations with All automations table and New automation button — Automations list — name, status, trigger, action count, and New automation

Page title Automations. Description: Trigger actions when events happen in Zippendo. The table heading is All automations.

List

Columns

Column	What it shows
Name	Automation name (fallback Untitled automation) and optional description
Brand	Only when the org has brands and you are not in a brand view
Status	Active (green), Paused (orange), or Draft (gray)
Trigger	Registry label of the trigger node, or No trigger
Actions	1 action / N actions — count of `action.*` nodes only
Updated	Last updated date

Filters

Header filter (data-testid="filters.trigger"). Shared chrome: Search and filters.

Control	Options
Search	Placeholder Search…. Matches automation name.
Status	Draft, Active, Paused
Brand / scope	Same brand filter as other lists, when brands exist

Apply with Add filters.

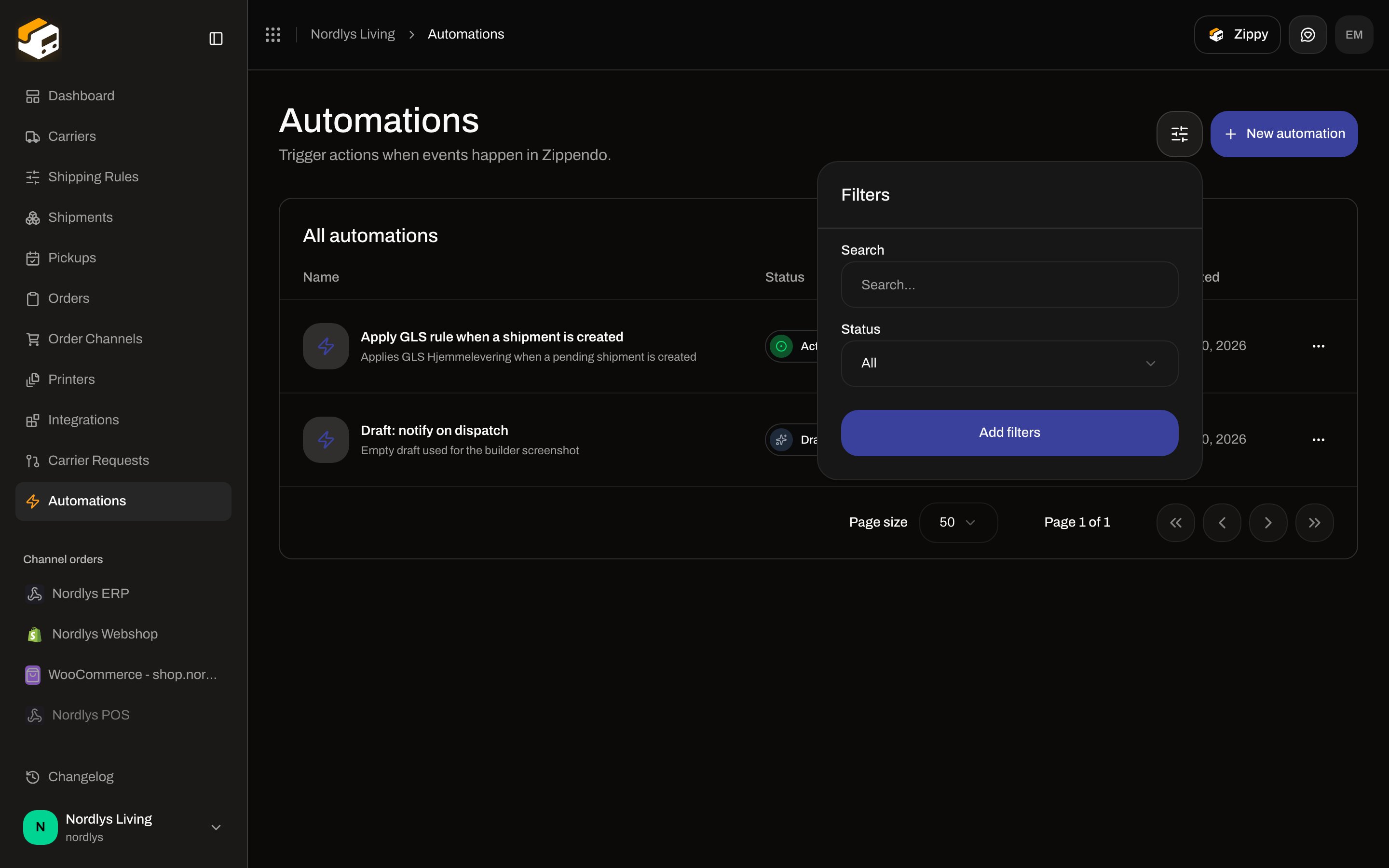

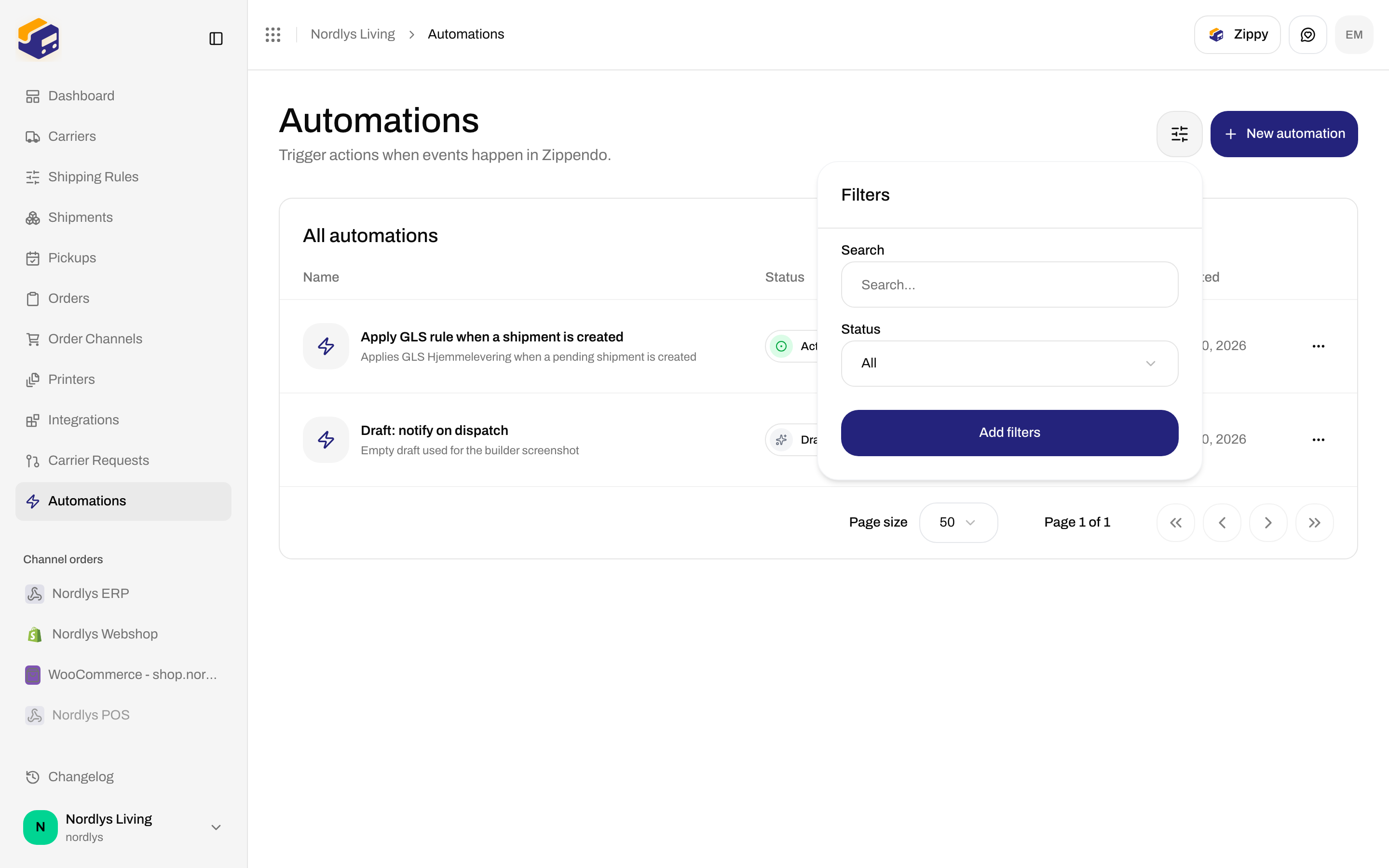

Filters popover with Search and Status on the Automations list — Filters — Search, Status (Draft / Active / Paused)

Empty state

When the API returns no rows: icon, title No automations yet, description Create your first automation to run actions when shipments are dispatched. Button Create automation (opens the same modal as New automation). data-testid="table.row-actions":

Item	What it does
Edit	Opens the builder
Test run	Enqueues a manual run (`event: manual.test`, empty payload). Toast Test run started or Test run failed. The API rejects an empty graph (The request was invalid.).
Delete	Opens Delete automation

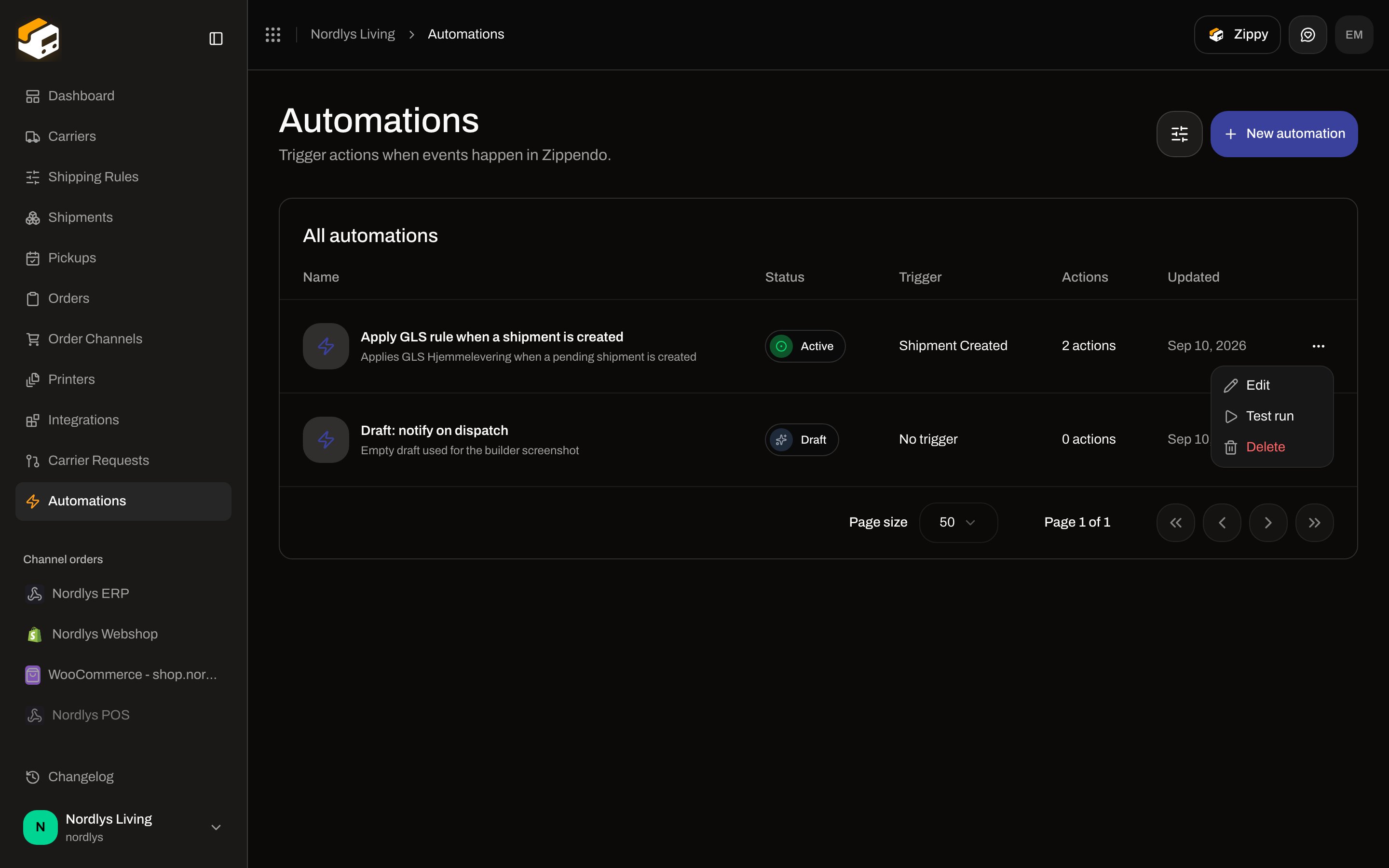

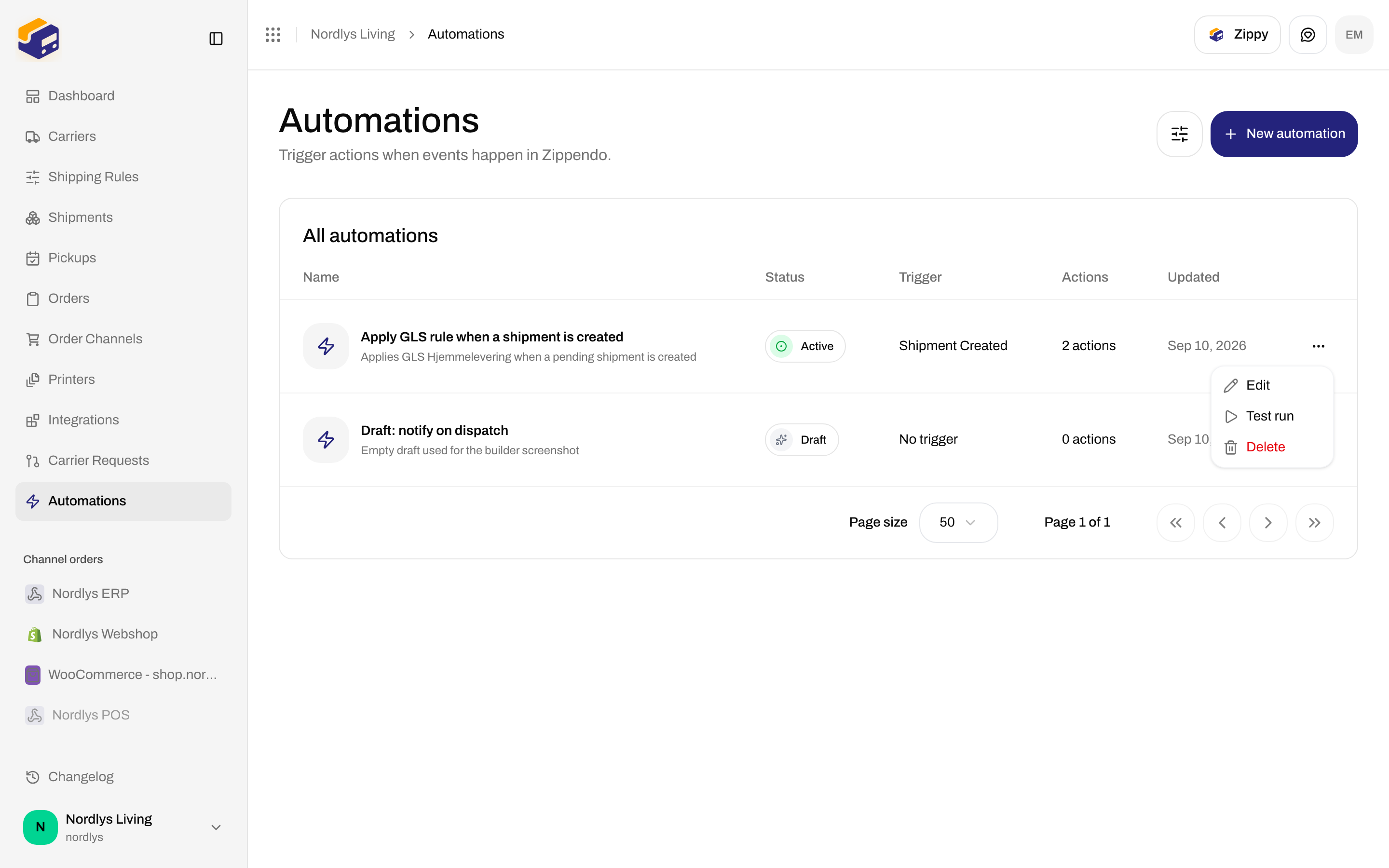

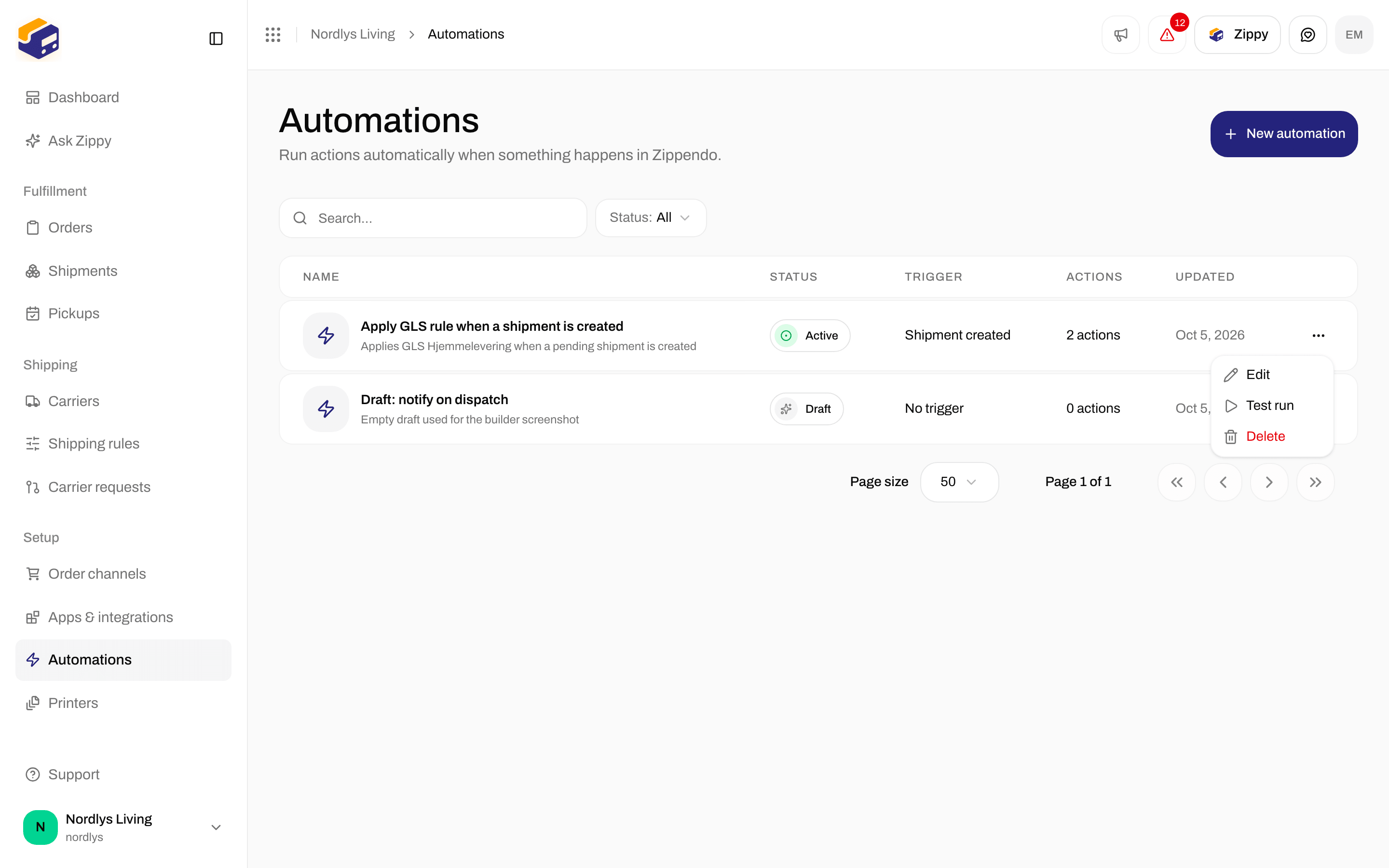

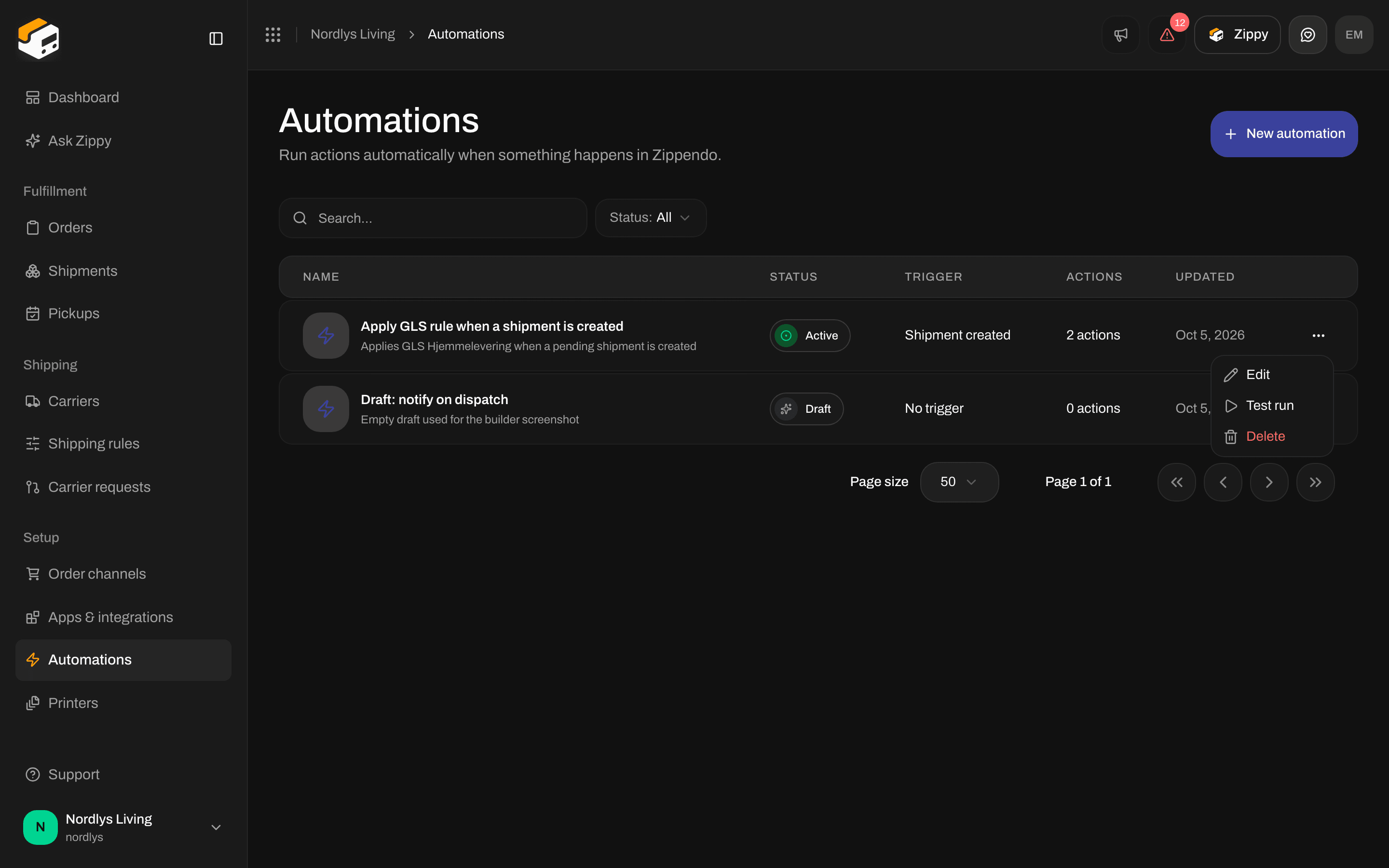

Automations row menu with Edit, Test run, and Delete — Row menu — Edit, Test run, Delete

Create

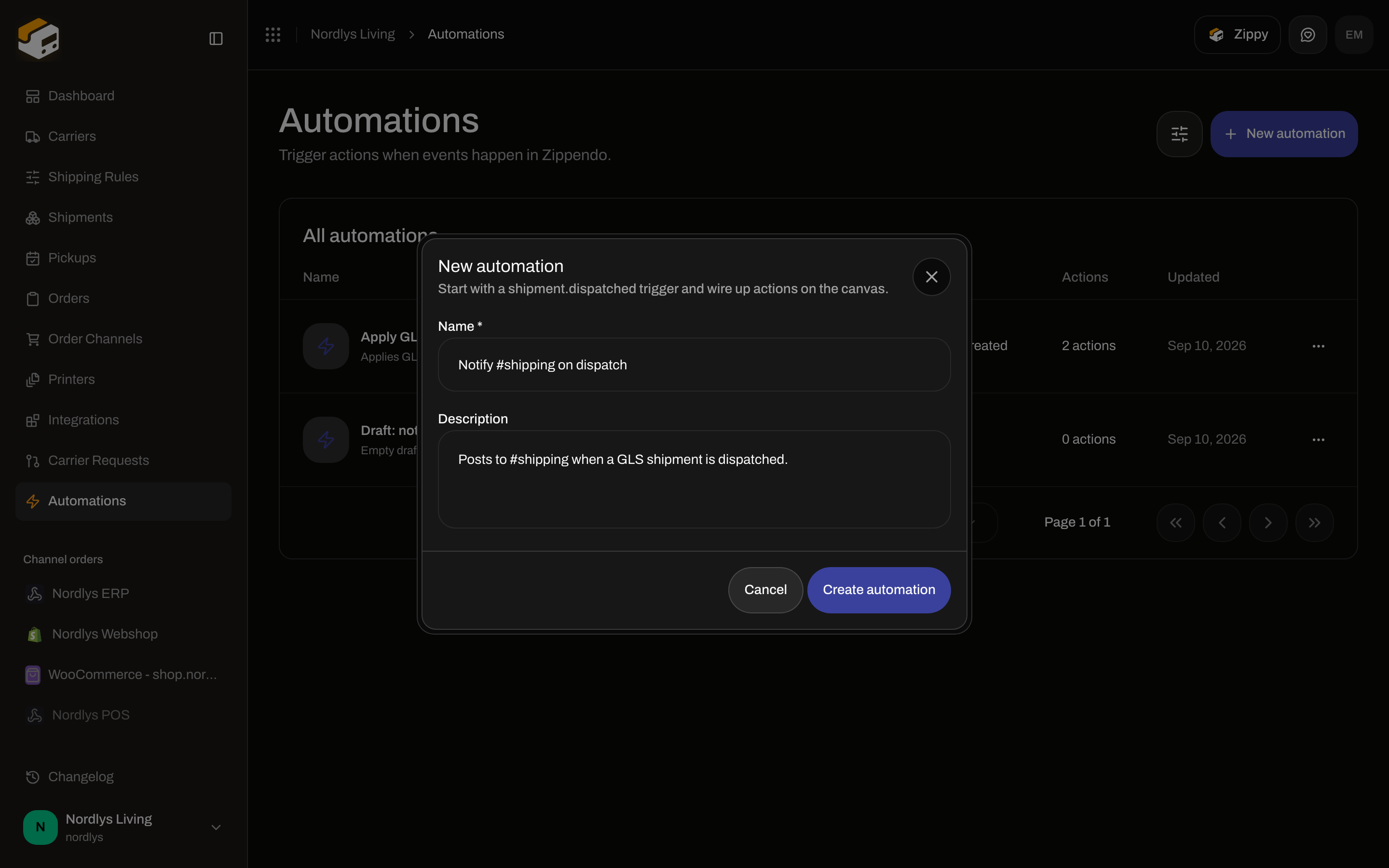

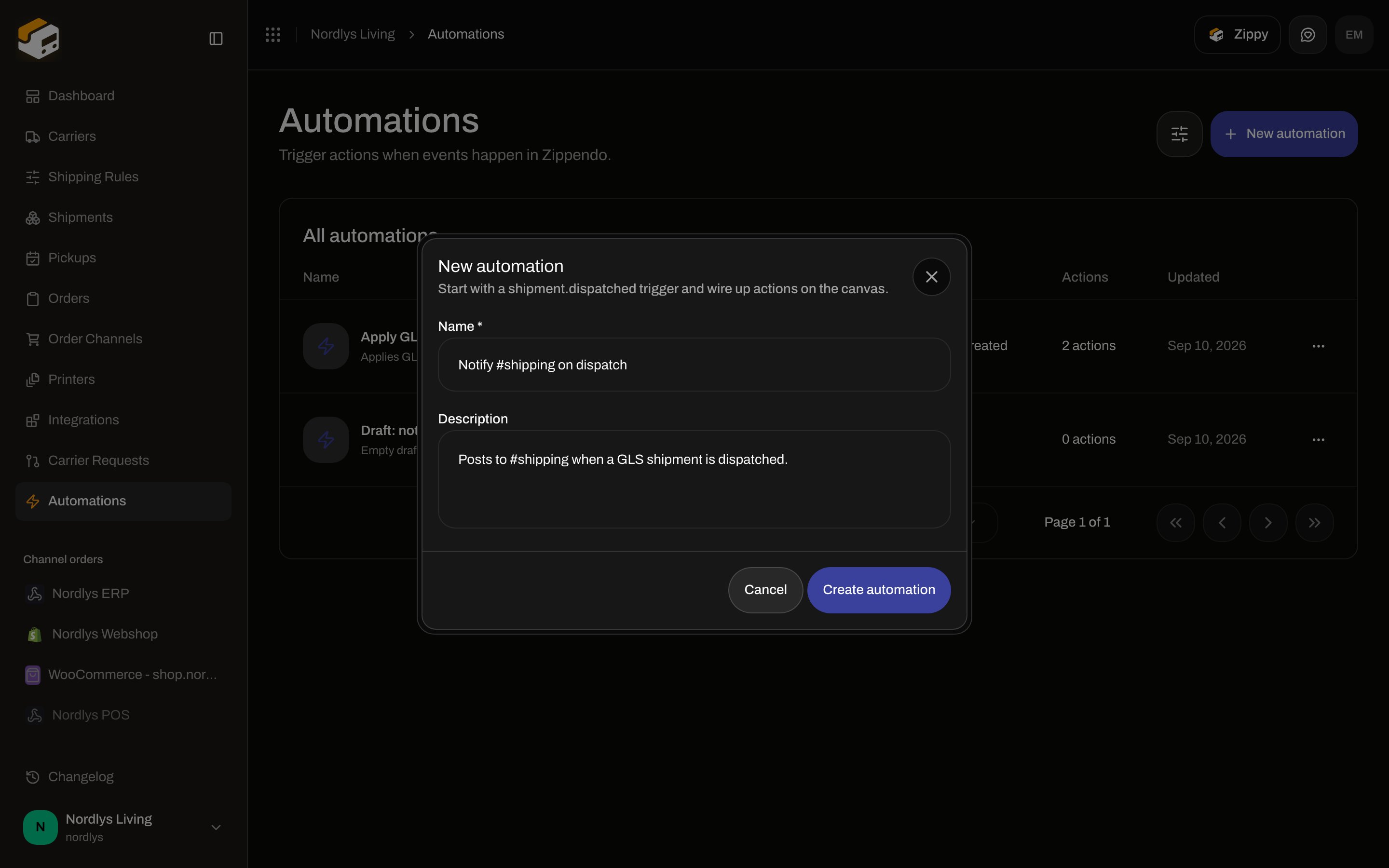

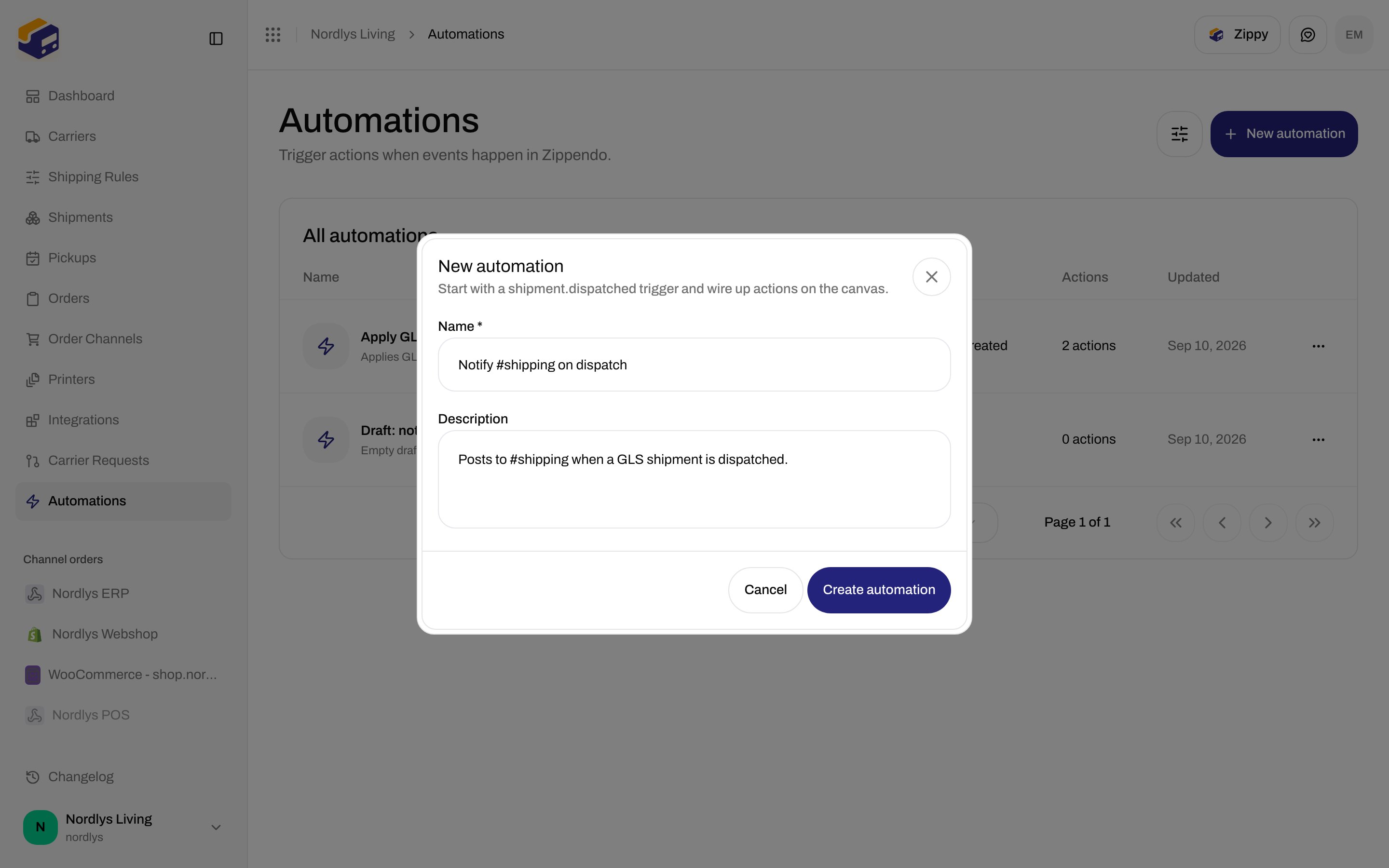

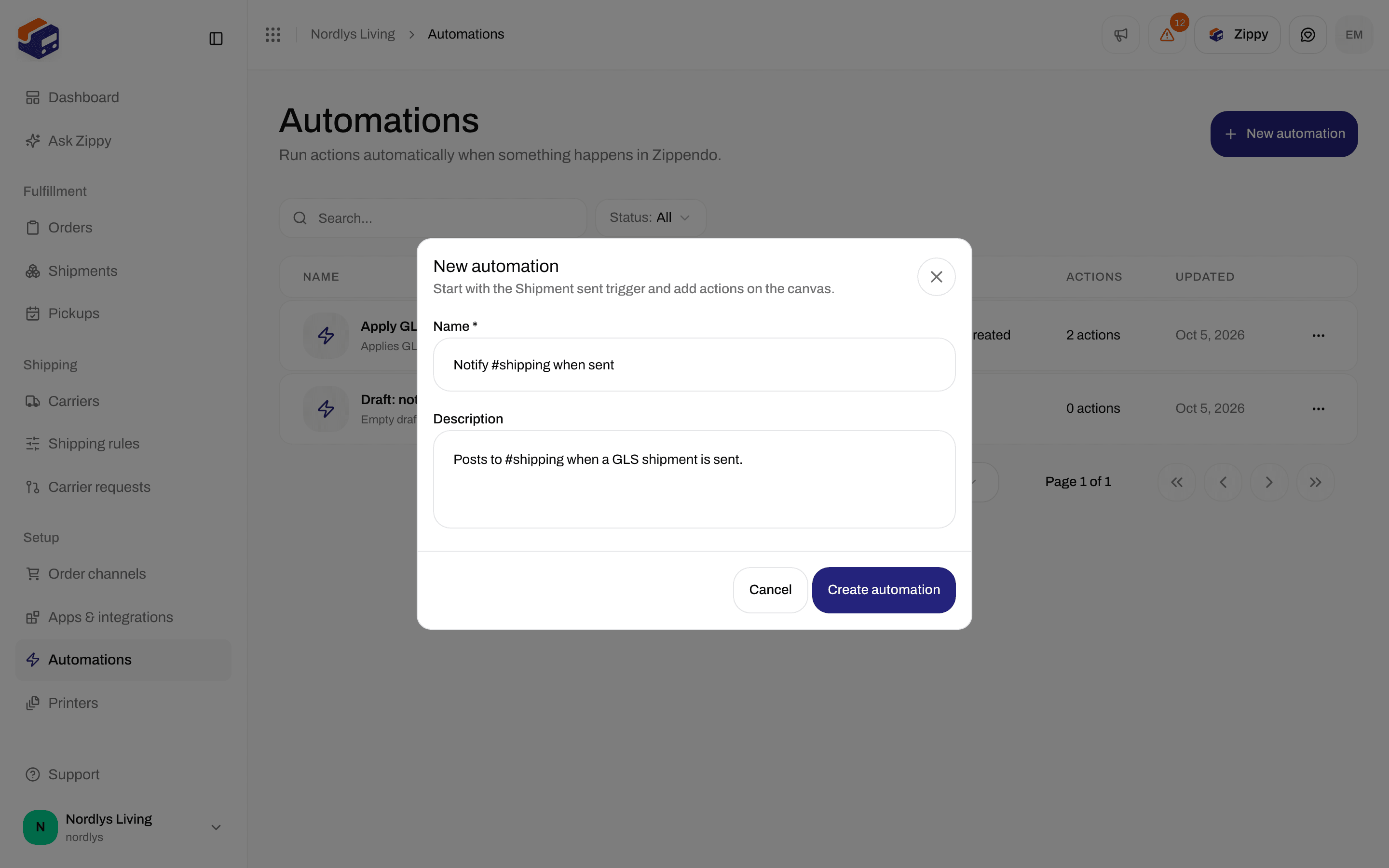

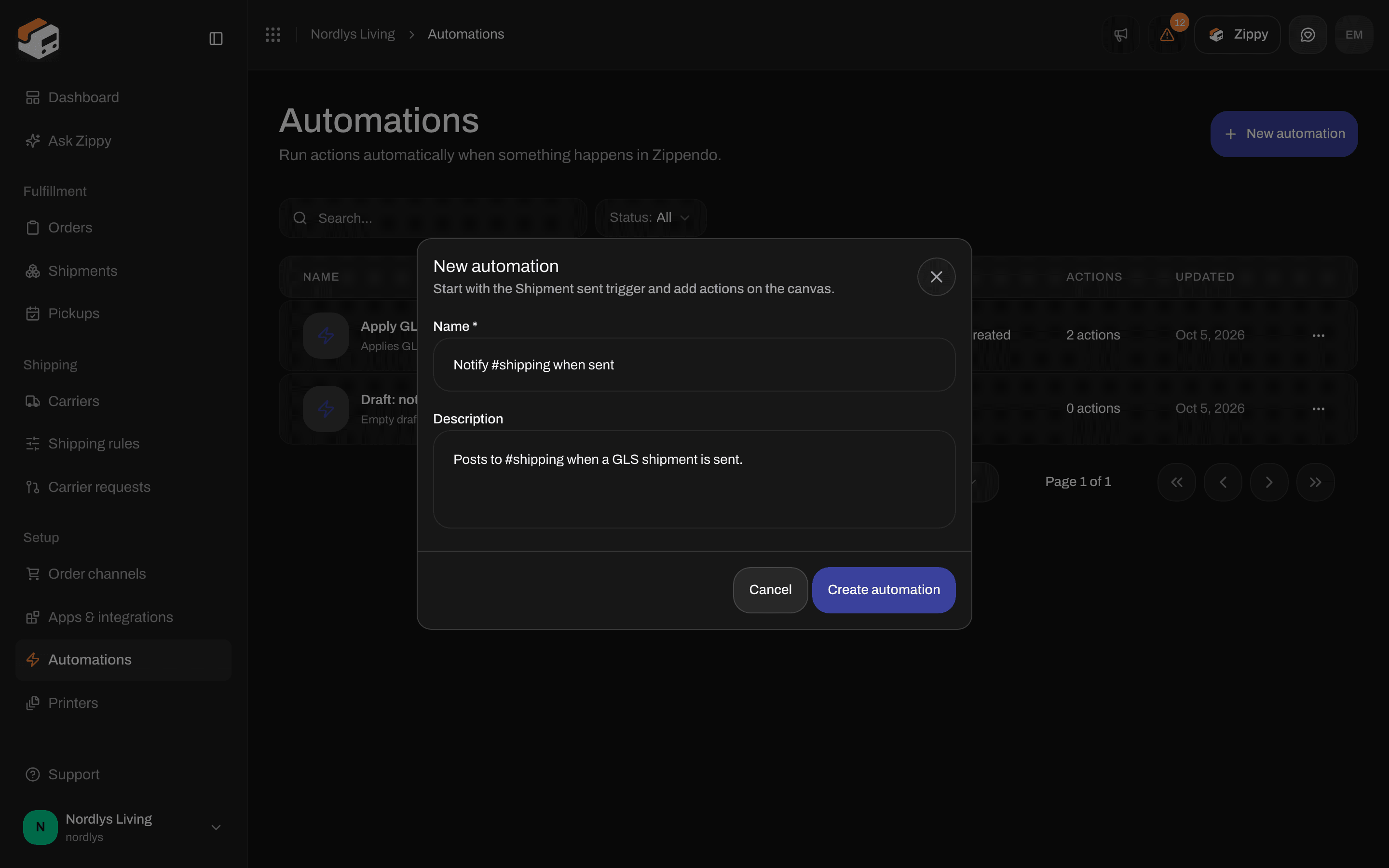

Click New automation. Modal id create-automation-modal. Title New automation. Subtitle: Start with a shipment.dispatched trigger and wire up actions on the canvas. That subtitle is copy only — the saved graph starts empty. You add a trigger yourself.

Field	Required	Limits	Placeholder / helper
Name *	Yes	1–100 characters. Create automation stays disabled until the name is non-empty after trim.	e.g. Notify #shipping on dispatch
Description	No	Max 500. Empty string is stored as `null`.	What does this automation do?
Brand	No	Only when the org has brands and you are in the house view. Label Brand. Helper: This automation runs only for this brand’s events. Unset = organization-wide (runs for every brand’s events).	Hidden when you have no brands

Actions: Create automation / Cancel. Success toast Automation created; you land on the builder. Failure toast Failed to create automation, or the API code (plan cap: You have reached your plan limit for this resource.). Create always stores Draft, triggerType empty, graph: { nodes: [], edges: [] }. Plan caps (from Manage → Pricing Plans): Standard 5 automations, Growth 20, Pro 50. Hitting the cap opens Unlock more automations — You’ve reached your plan’s automation limit. Upgrade to build more automated workflows. See Billing and usage.

Enable, pause, and rename

Status in the list is Draft / Active / Paused. In the builder the status control is a two-state toggle:

Shown label	Tooltip	Next status
Paused	Click to activate	Active
Active	Click to pause	Paused

A Draft shows Paused on this toggle. The first successful click writes Active. There is no control that returns an automation to Draft. The toggle is disabled with Fix validation issues to activate when the graph has issues and the automation is not already active. Activating with an invalid graph returns VALIDATION_FAILED (One or more fields are invalid.) plus the issue messages. Click the title in the top bar to rename (Enter commits, Escape cancels). Empty rename reverts. Save writes the graph. It stays Saved until the canvas is dirty. Save is disabled until you change something. Saving with validation issues toasts Can’t save — fix issues first.

Delete

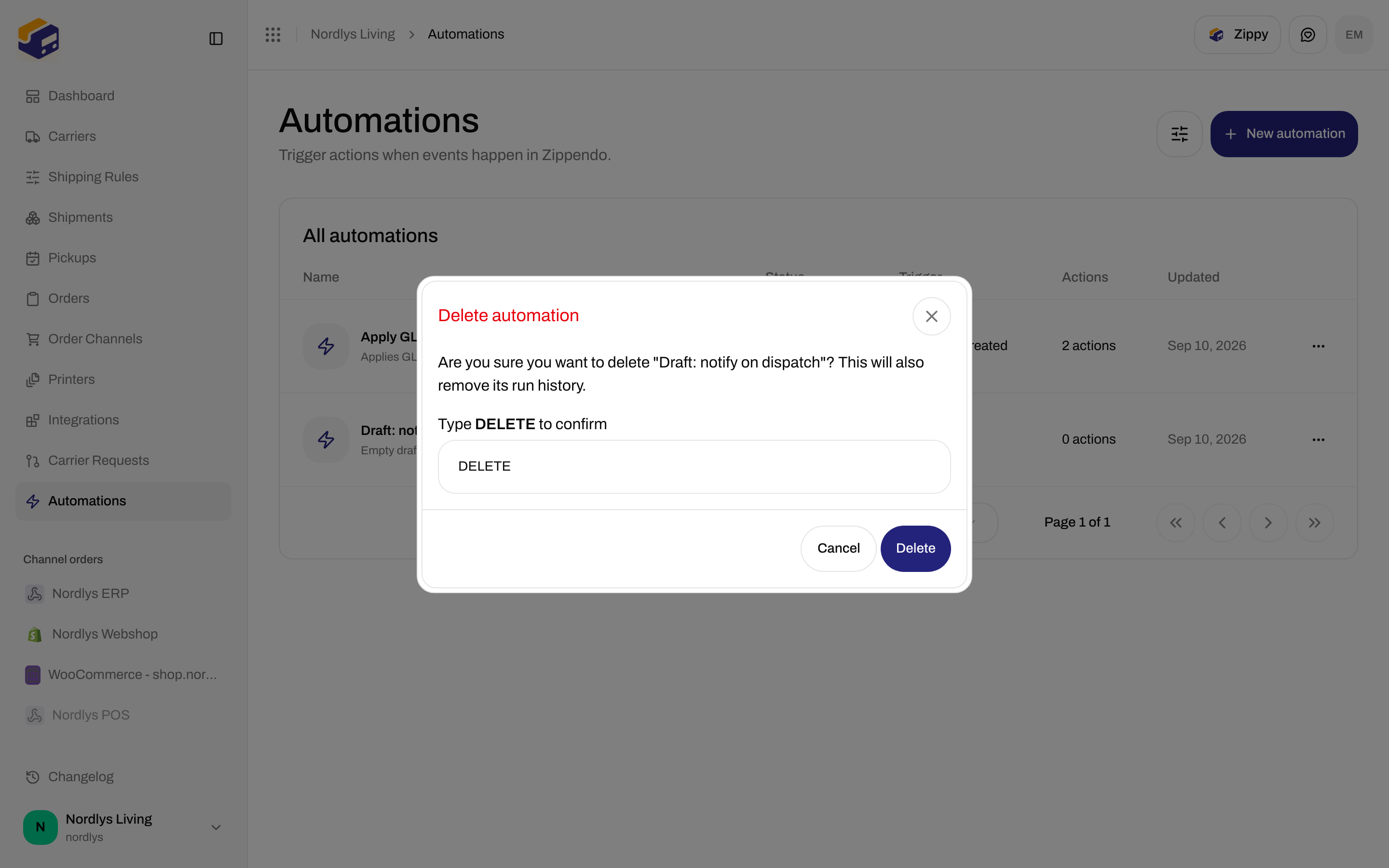

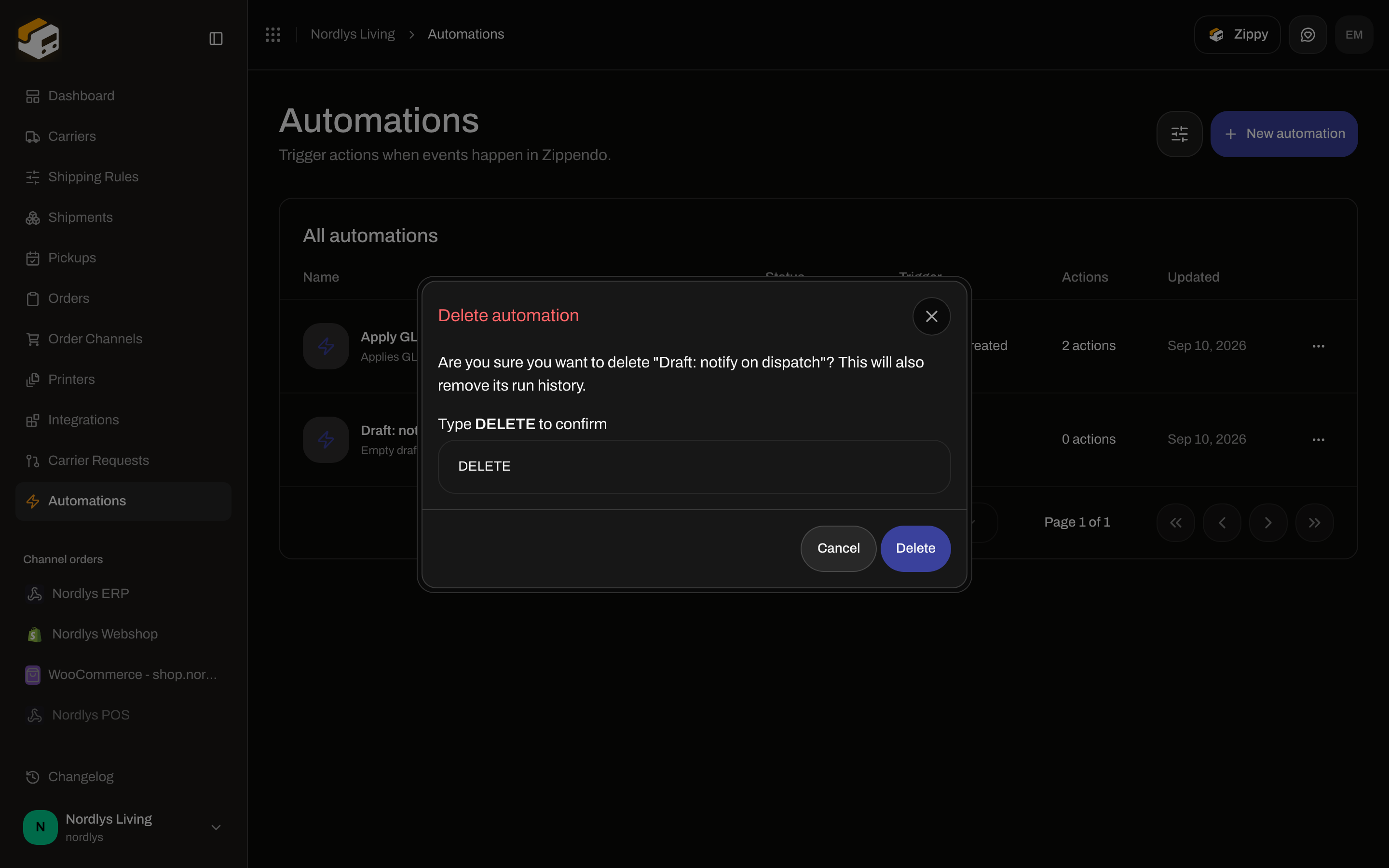

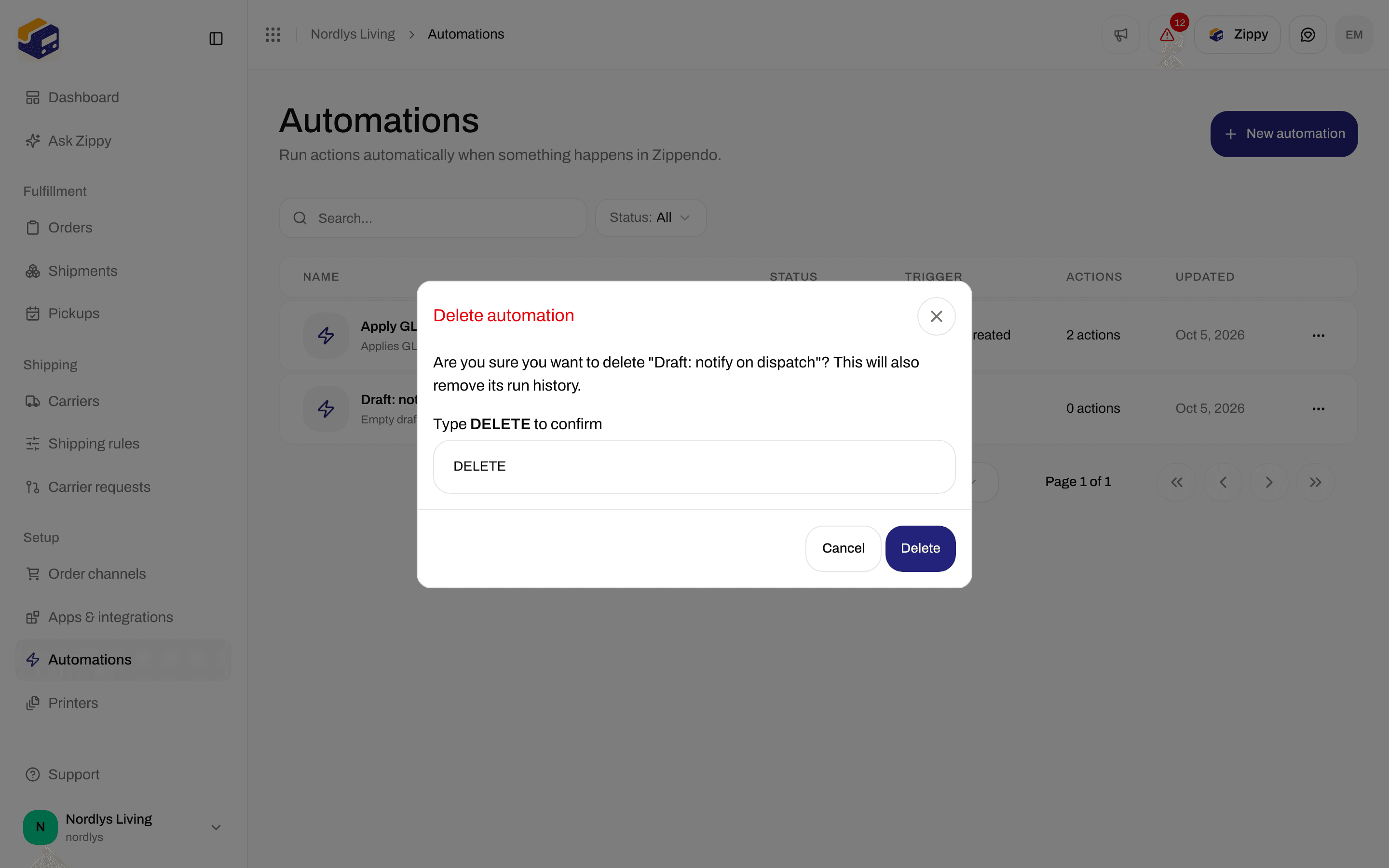

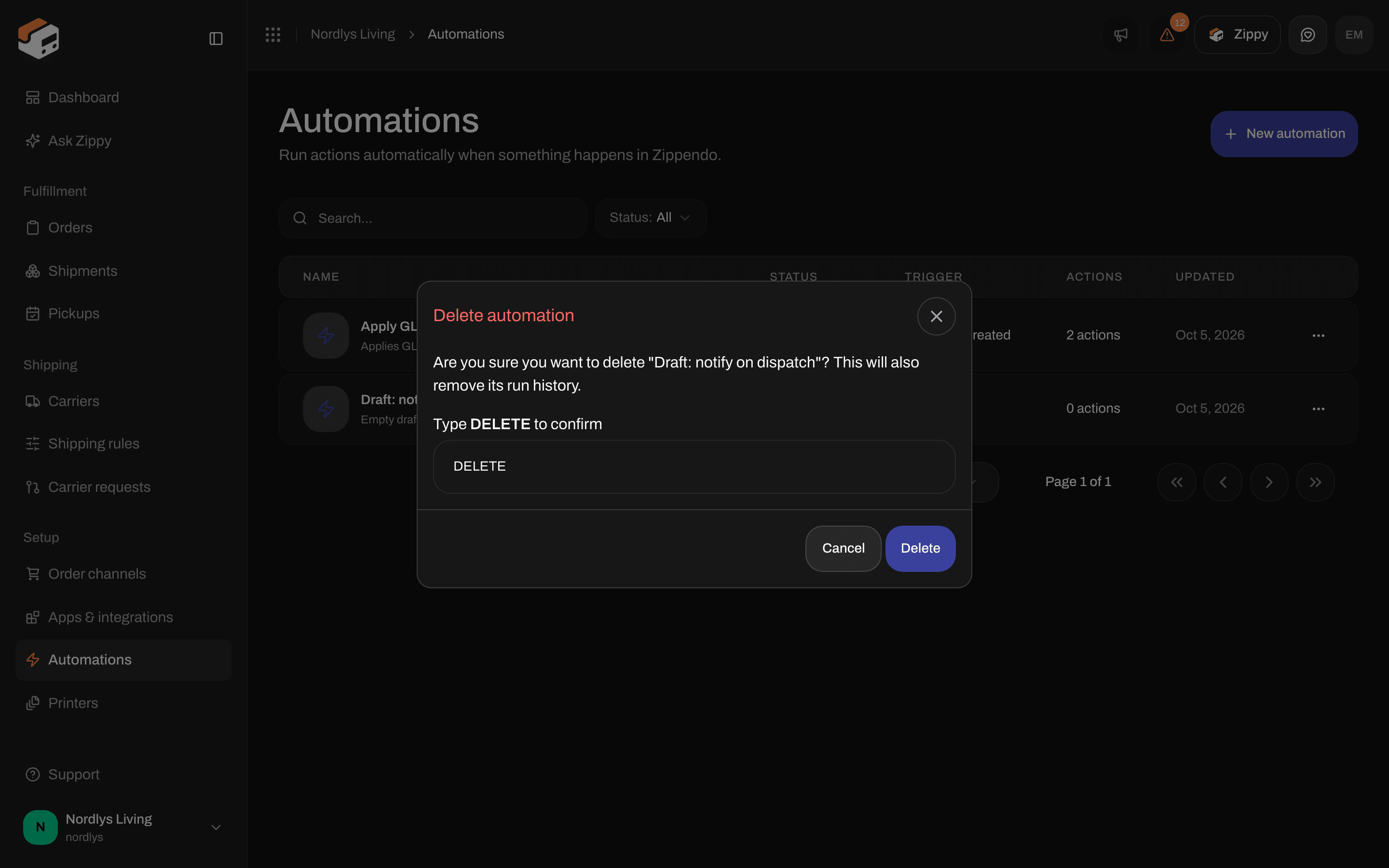

Row menu Delete. Title Delete automation. Body: Are you sure you want to delete ""? This will also remove its run history. Type DELETE to enable Delete. Toast Automation deleted / Failed to delete automation.

Builder

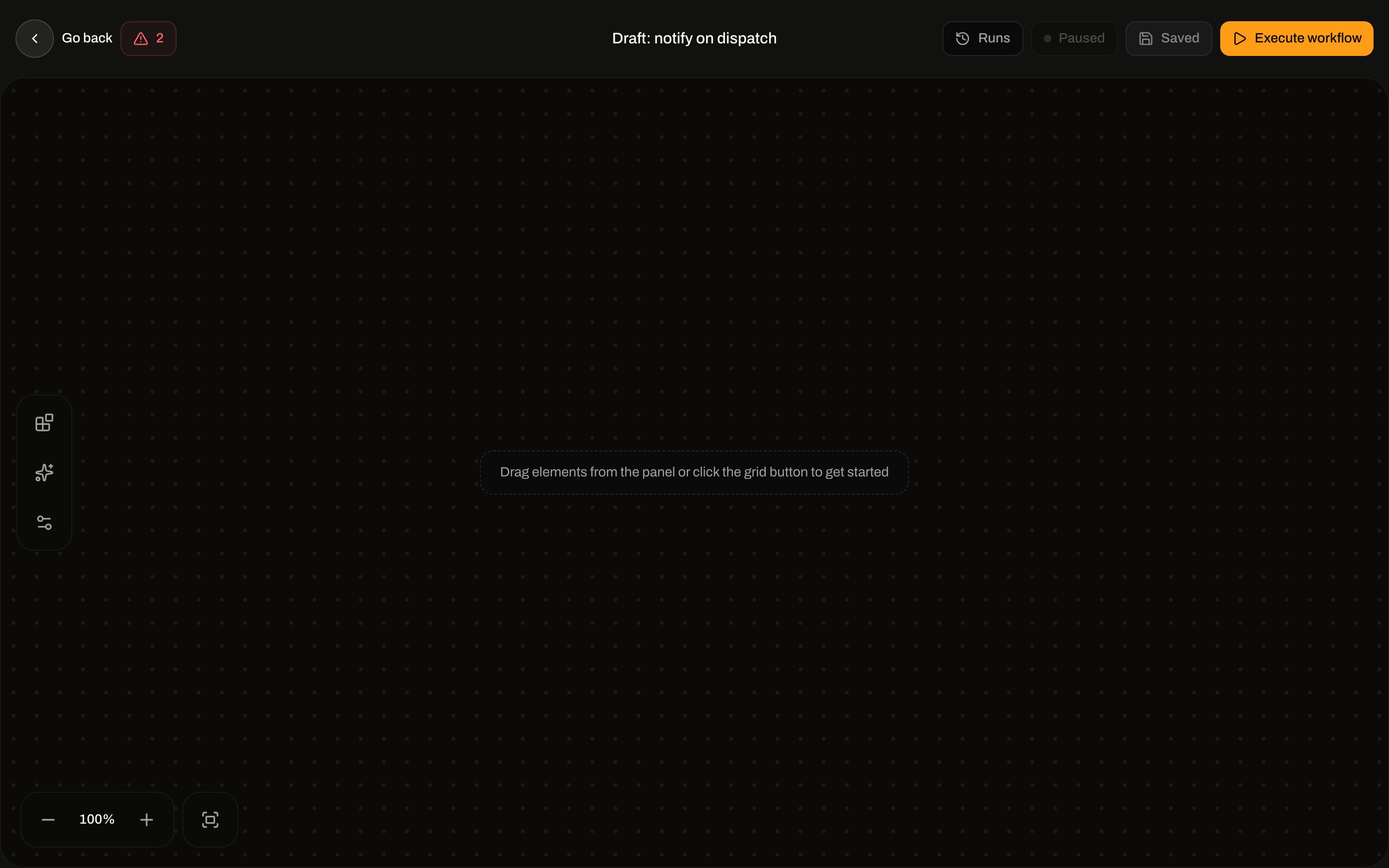

/{org}/dashboard/automations/:id. Full viewport — no app sidebar. On viewports below md: title The automation builder isn’t available on mobile, description Open Zippendo on a computer to create and edit automations., button Back to automations. Missing automation: Automation not found / It may have been deleted. / Back to automations. Empty canvas hint: Drag elements from the panel or click the grid button to get started.

Top bar

Control	Label
Back	Go back (to the list)
Issues	Count badge when validation fails. Popover title 1 issue blocking activation / N issues blocking activation. Each row is the issue message; Click to jump to node or Graph-level.
Title	Click to rename
Runs	Recent runs popover
Status toggle	Active / Paused (see above)
Save / Saved	Persist graph
Execute workflow	Same test run as the list Test run. Toasts Can’t run — fix issues first when validation fails. Unsaved dirty graphs are saved first.

Left rail

Button (`aria-label`)	What it does
Elements	Opens the node palette. Closes the inspector.
Auto layout	Vertical flow or Horizontal flow. Empty canvas toasts Add some nodes first to auto-layout. Success: Arranged vertically / Arranged horizontally.
Canvas settings	Local preferences (see below)
Zoom out / Zoom in / Fit view	Canvas zoom

Canvas settings

Popover title Canvas. Description Preferences for building workflows. Stored in localStorage as zippendo-automation-canvas-settings.

Toggle	Default	Description
Snap to grid	On	Align nodes to a grid when dragging.
Animate connections	On	Show flow animation on connection lines.
Show background grid	On	Display dot grid behind the canvas.
Always show connectors	Off	Keep connection points visible on nodes.

Elements palette

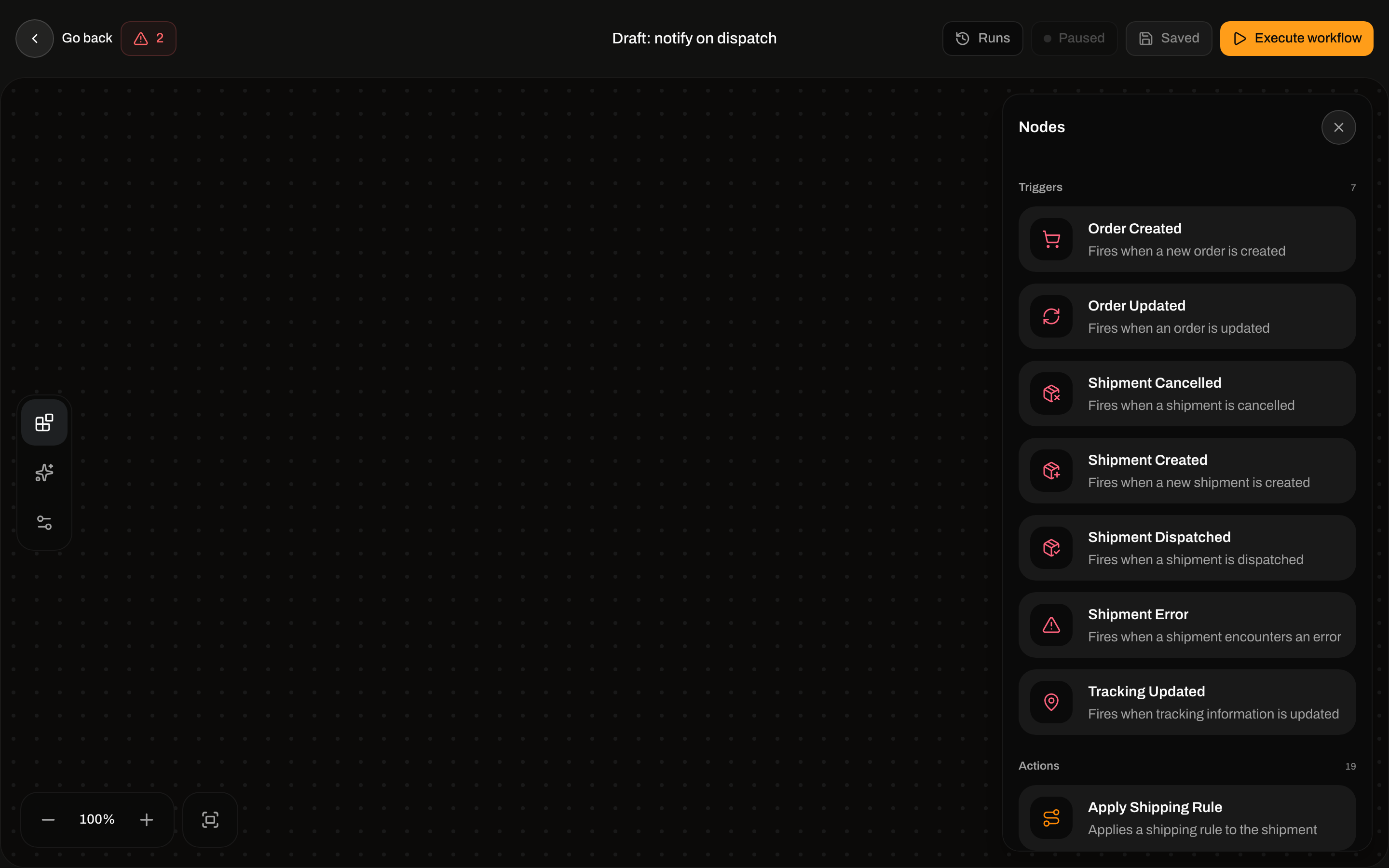

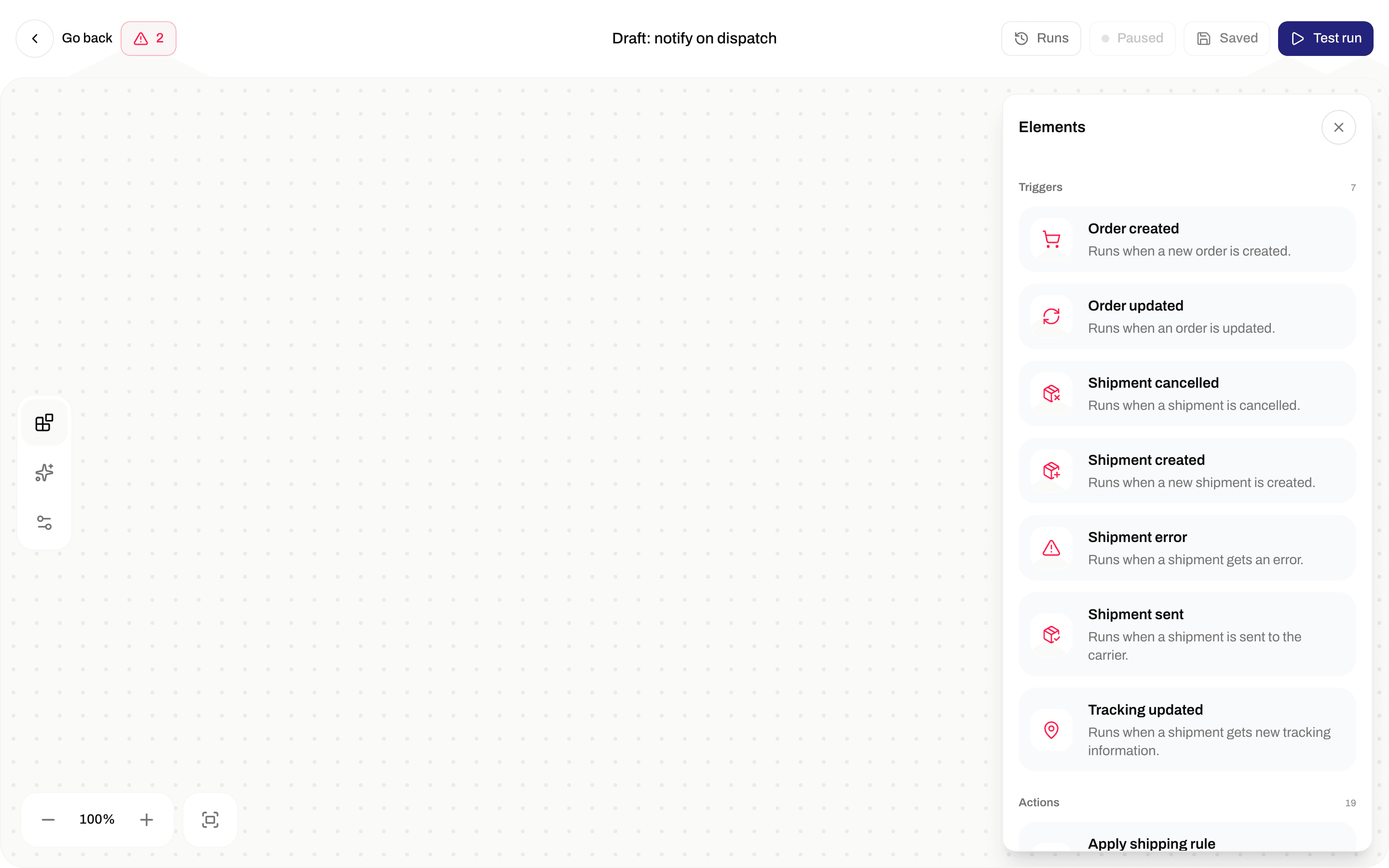

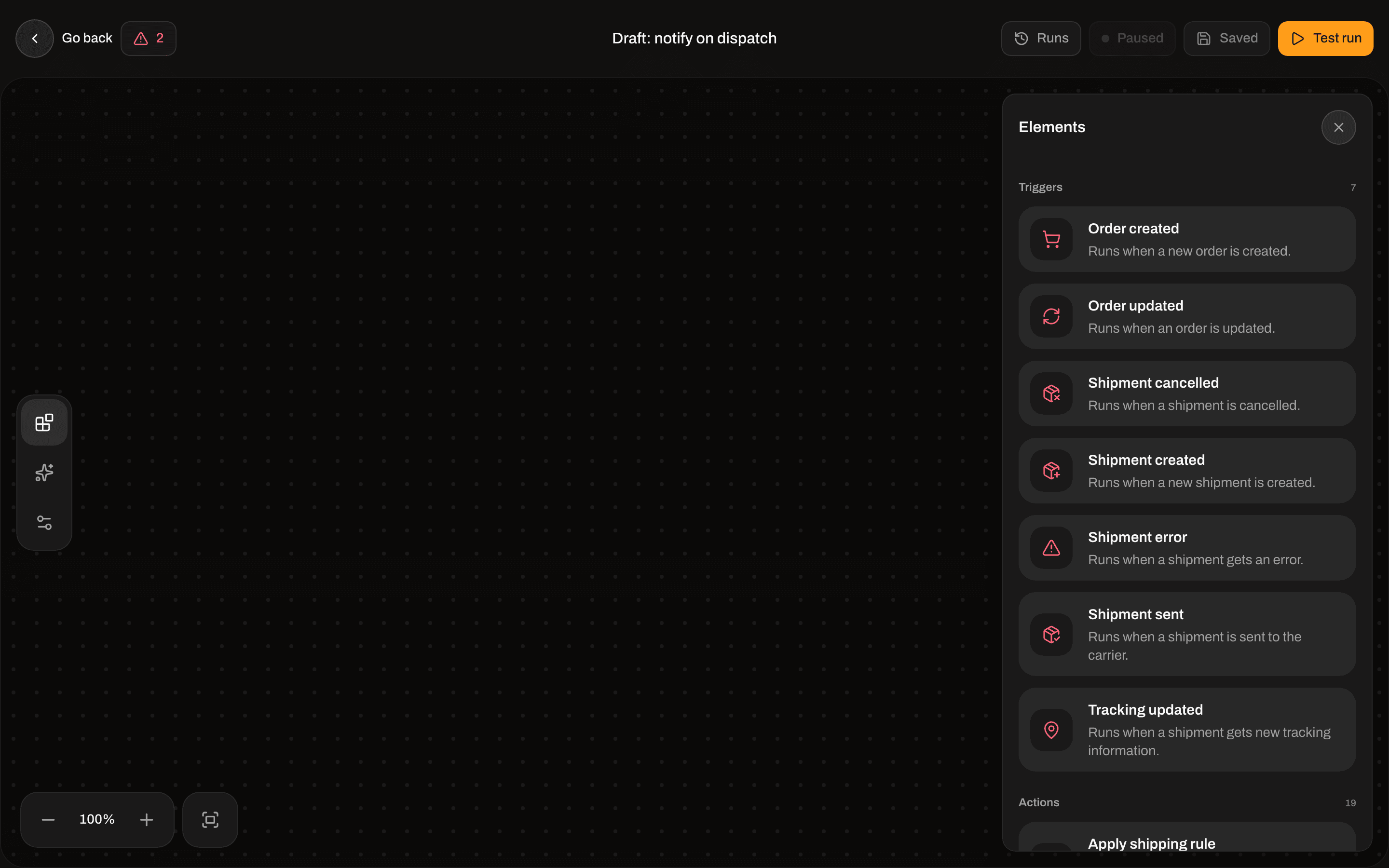

Title Nodes. Groups Triggers, Actions, Conditions, Flow (with a count). Click or drag onto the canvas. A singleton already on the canvas (every trigger is singleton — one per graph) shows badge Added and cannot be added again. Empty search: No elements match / Try a different search term. (search input is not shown in the current palette.)

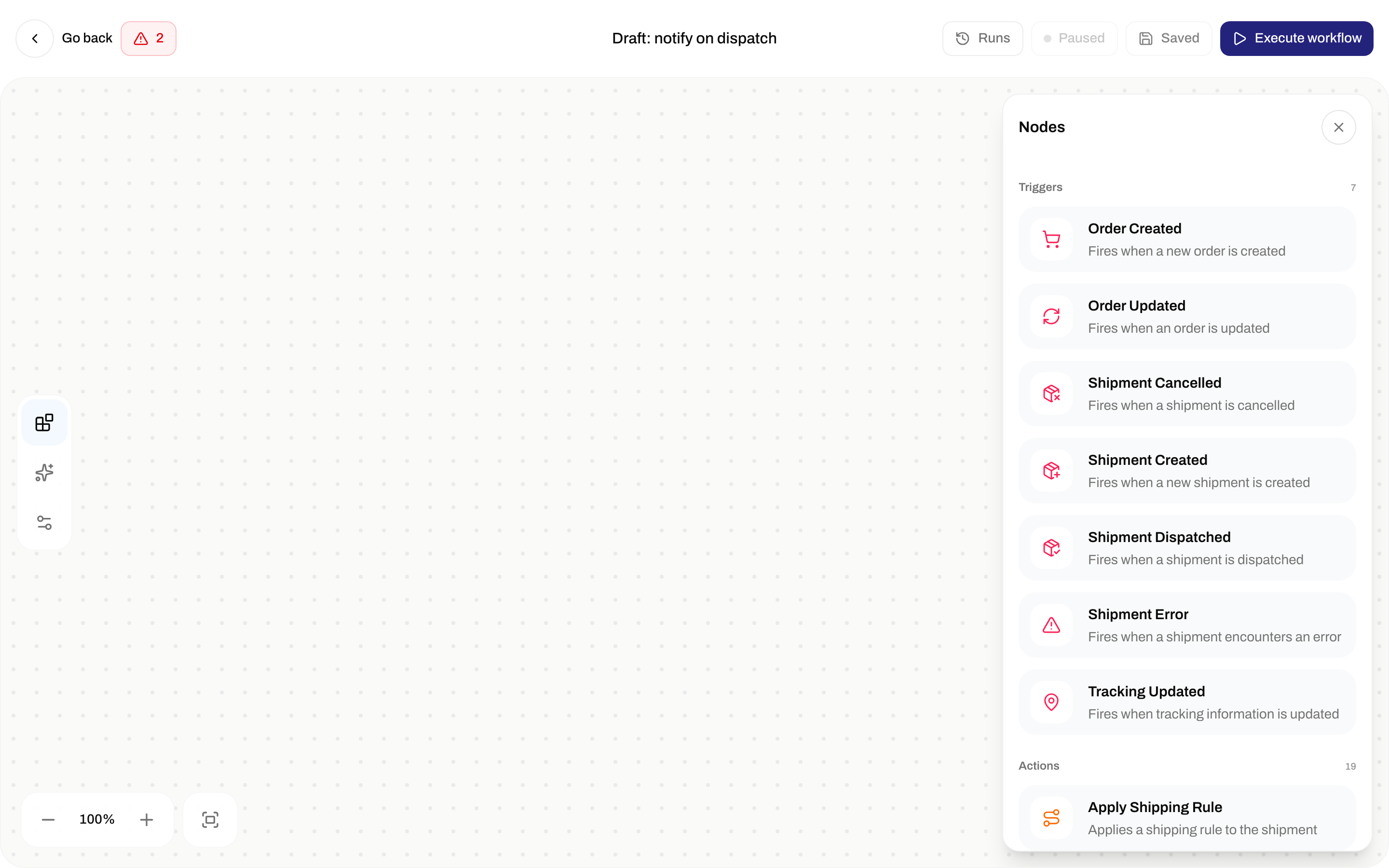

Nodes palette listing Triggers and Actions for the automation builder — Elements palette — Triggers, then Actions

Palette names and descriptions come from the node registry (English). Canvas subtitles are the registry category (Shipments, Orders, Tracking, Integrations, Printing, Logic, Flow). Non-trigger nodes have Remove node in the inspector footer.

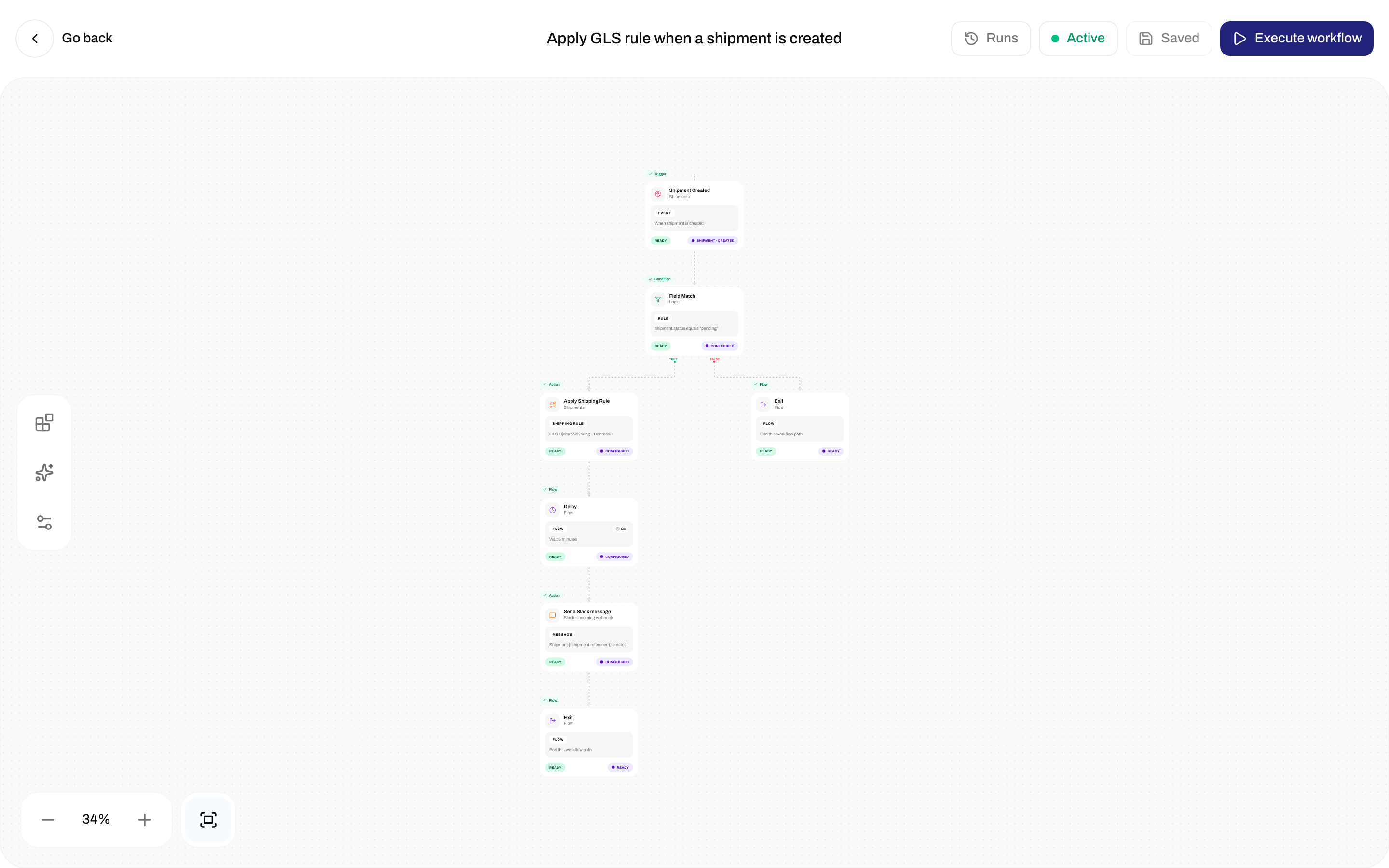

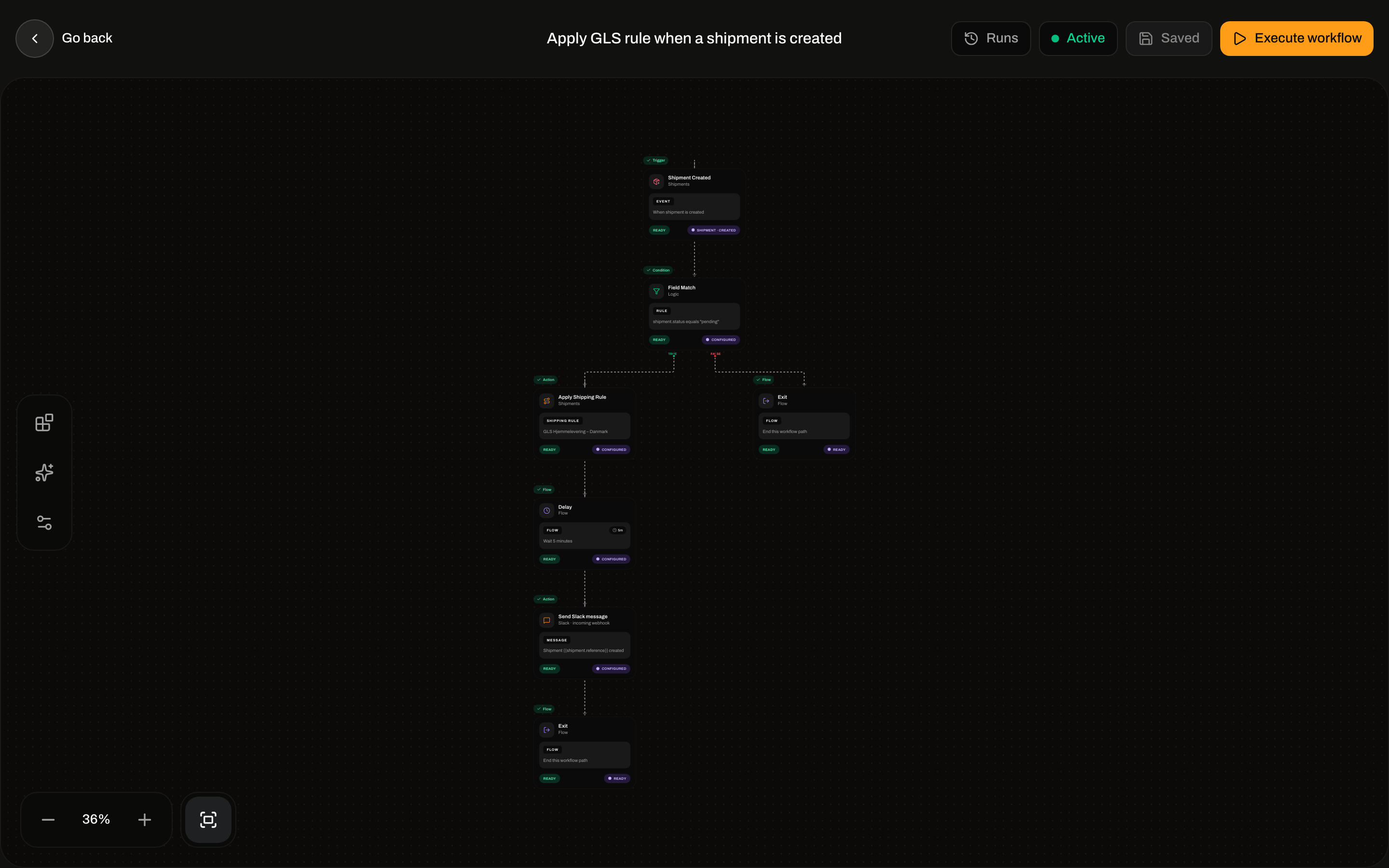

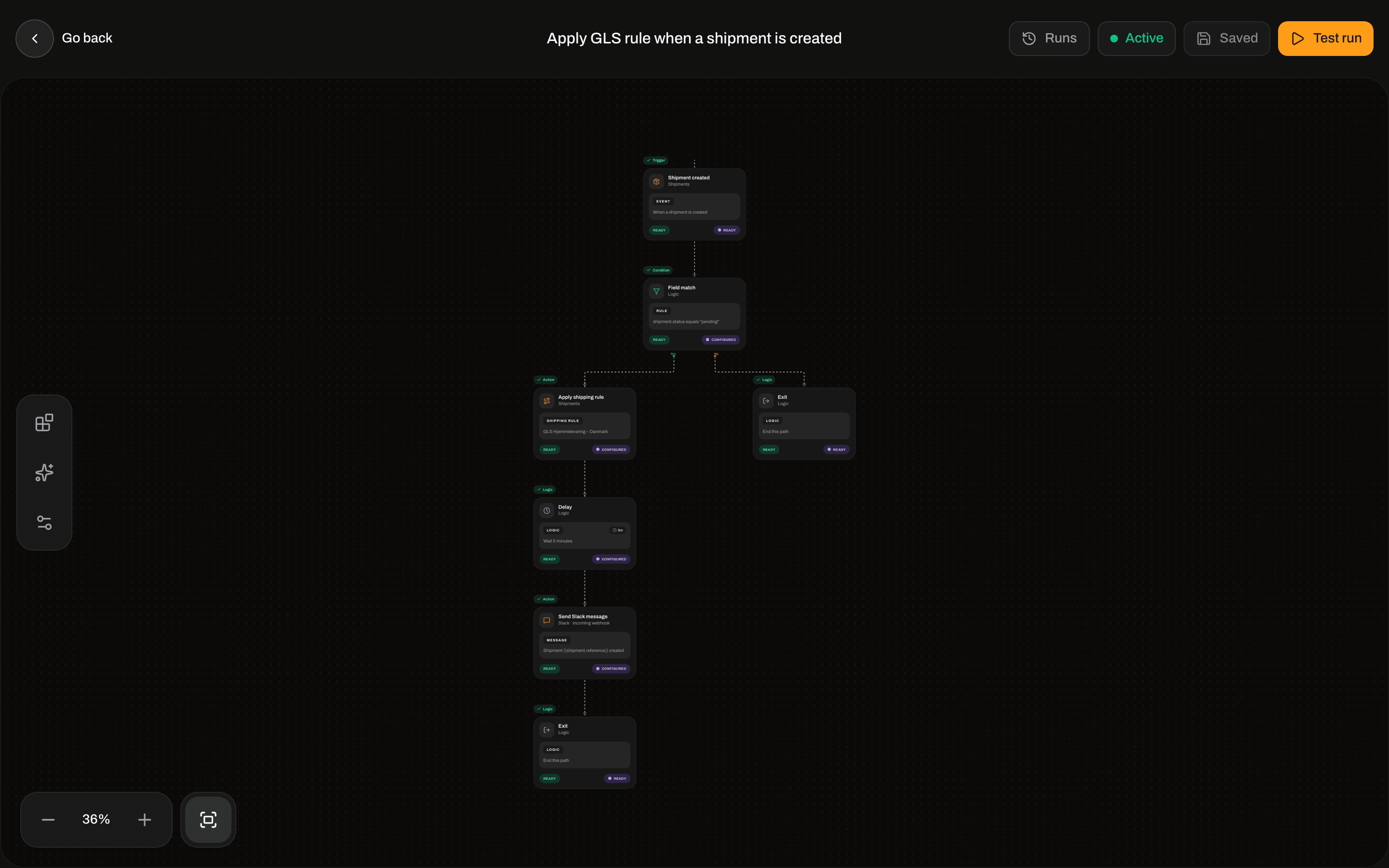

Automation canvas with Shipment Created, Field Match, Apply Shipping Rule, Delay, Send Slack message, and Exit — Connected graph — trigger, field match, apply rule, delay, Slack, and Exit

Validation (blocks save, activate, and Execute workflow)

Message	When
Automation must have a trigger node	No `trigger.*` node
Only one trigger node is allowed	Second trigger
Add at least one Exit node to end the workflow	No Exit
Trigger nodes cannot have incoming connections	Edge into a trigger
Exit nodes cannot have outgoing connections	Edge out of Exit
Exit node must be connected to the workflow	Exit with no incoming edge
Connect both True and False branches	Field Match or Branch missing a `true` or `false` edge
Connect this node to another step or an Exit	Any non-exit node with no outgoing edge
Node is not connected to the trigger	Unreachable from the trigger
No path from the trigger reaches an Exit node	Exits exist but none is reachable
Zod config errors	Incomplete inspector fields (see each node)

Templates

Text fields that mention {{field}} interpolate with {{path}} or {{ nested.path }} (dot notation). Missing paths become empty strings. The inspector Sample payload for shipment/order triggers is flattened (reference, orderNumber). Live events are nested:

Trigger	Use in templates
Shipment Created / Shipment Dispatched	`{{shipment.id}}`, `{{shipment.reference}}`, `{{shipment.status}}`
Shipment Cancelled	`{{shipment.id}}`, `{{shipment.reference}}`
Shipment Error	Flat `{{shipmentId}}`, `{{reference}}`, `{{errorMessage}}` and nested `{{shipment.id}}`
Order Created / Order Updated	`{{order.id}}`, `{{order.orderNumber}}`, `{{order.status}}`
Tracking Updated	Flat `{{shipmentId}}`, `{{reference}}`, `{{trackingNumber}}`, `{{carrier}}`, `{{trackingStatus}}`, `{{trackingEvent}}`

Shipment actions still resolve the shipment via shipmentId or shipment.id. Field Match on carrier does not match a nested shipment payload — use a path that exists on the event (for example shipment.status).

There is no Shipment Updated trigger. shipment.updated is an app webhook event only — see Webhooks.

Triggers

Every trigger: no inspector fields. Copy: This trigger fires whenever the {event} event occurs. No configuration required. Then Sample payload and Use {{ field }} to reference payload values in downstream actions. Only active automations whose triggerType matches the event run. Brand-scoped automations run only for that brand’s events; org-wide automations run for every brand.

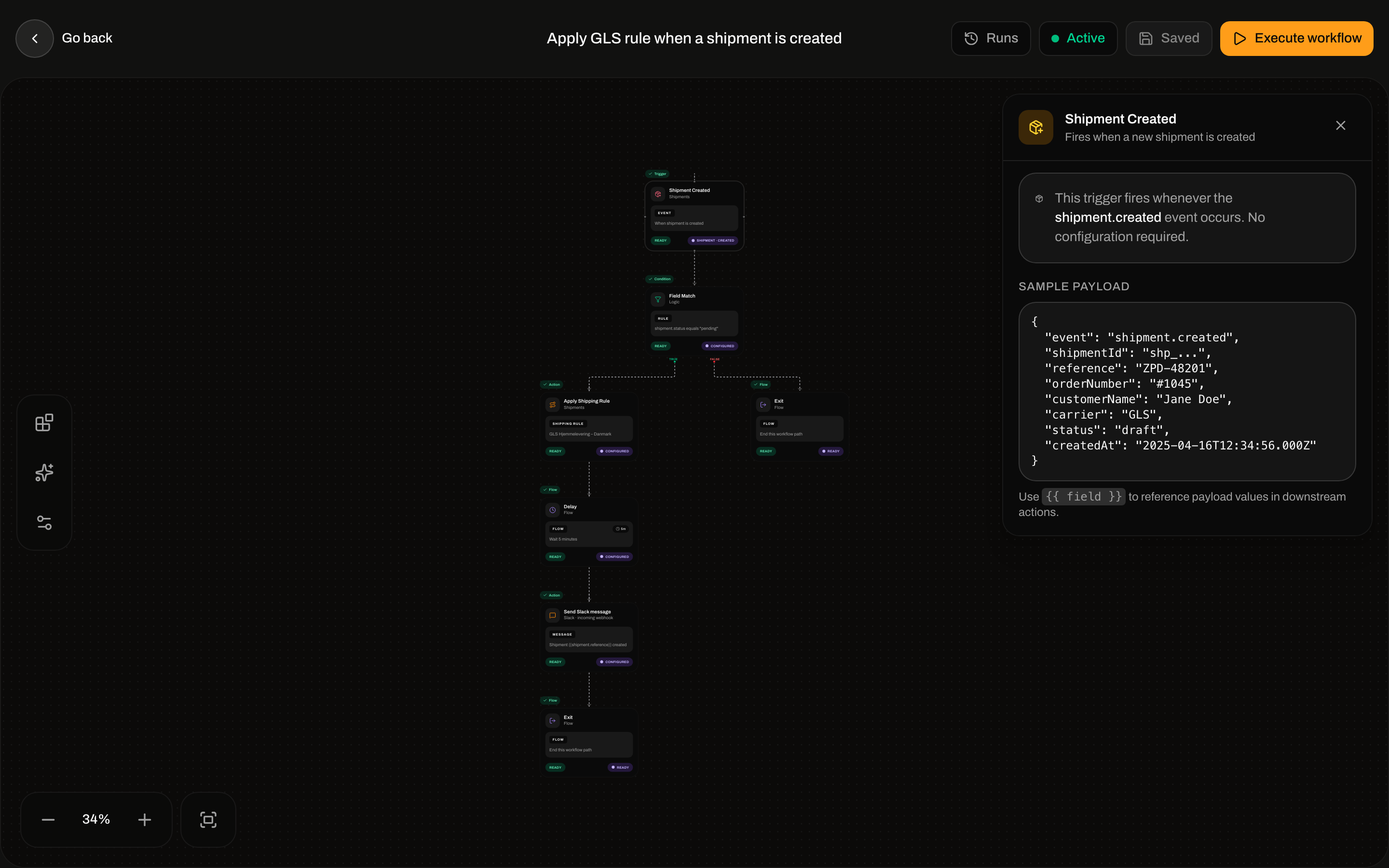

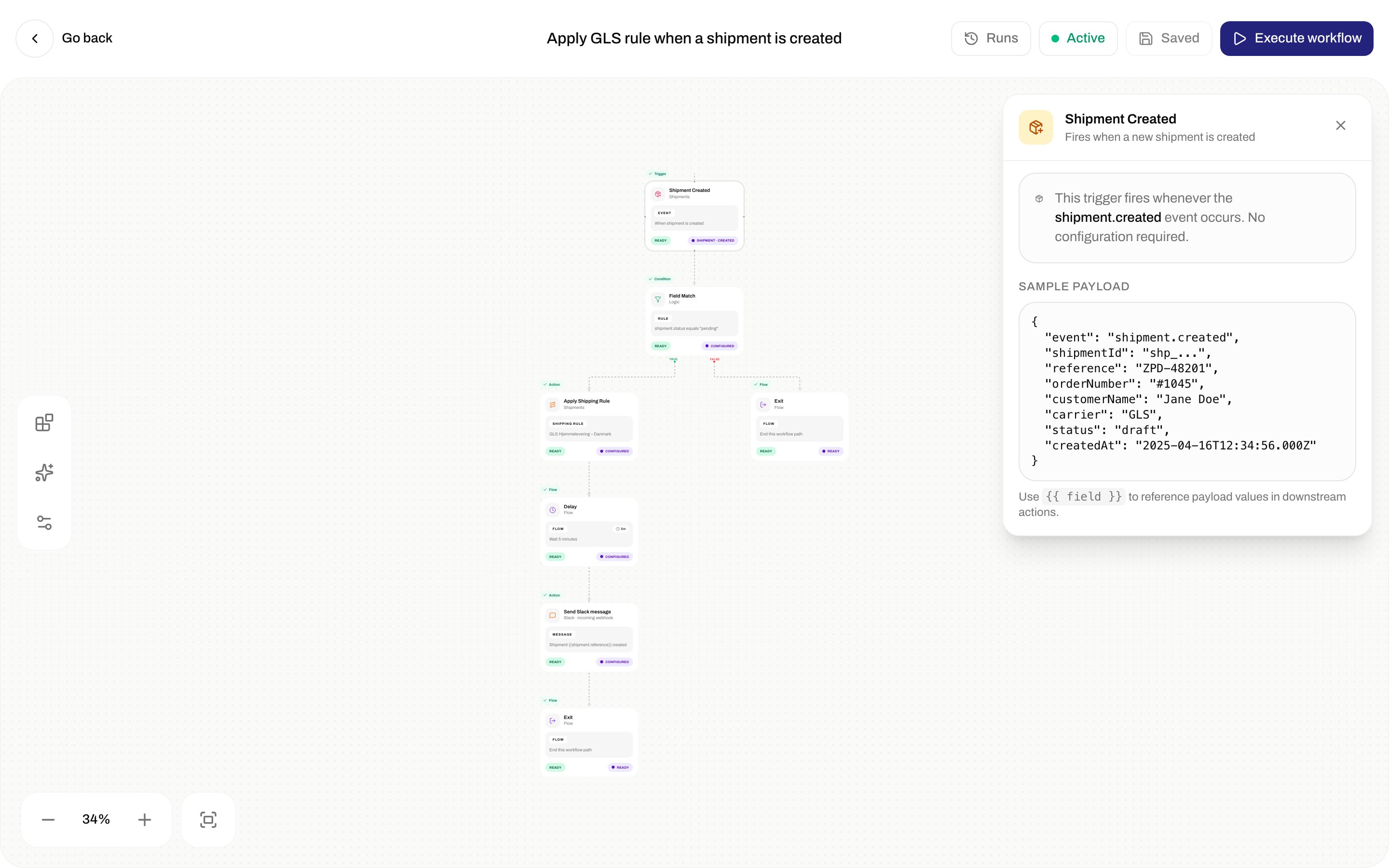

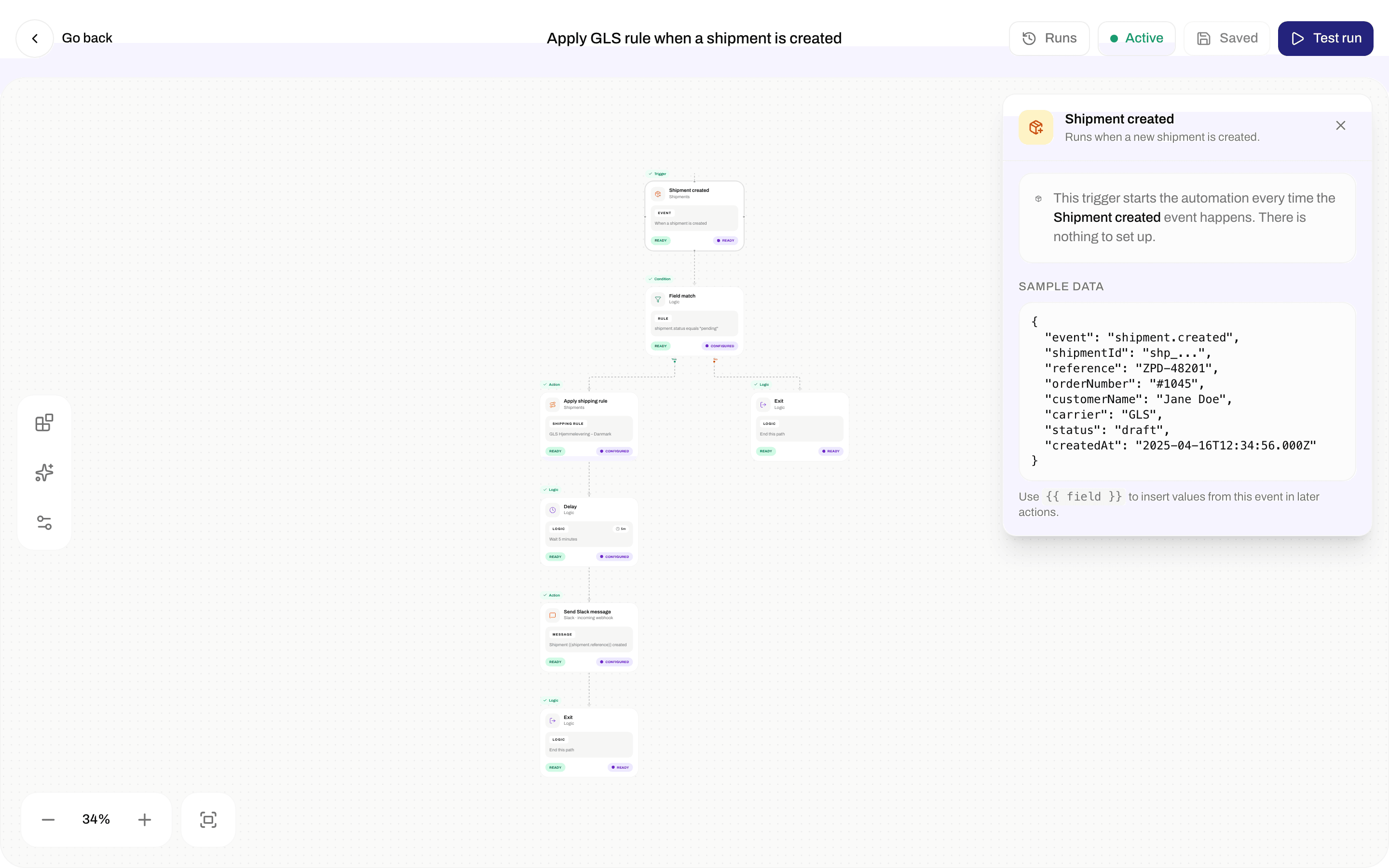

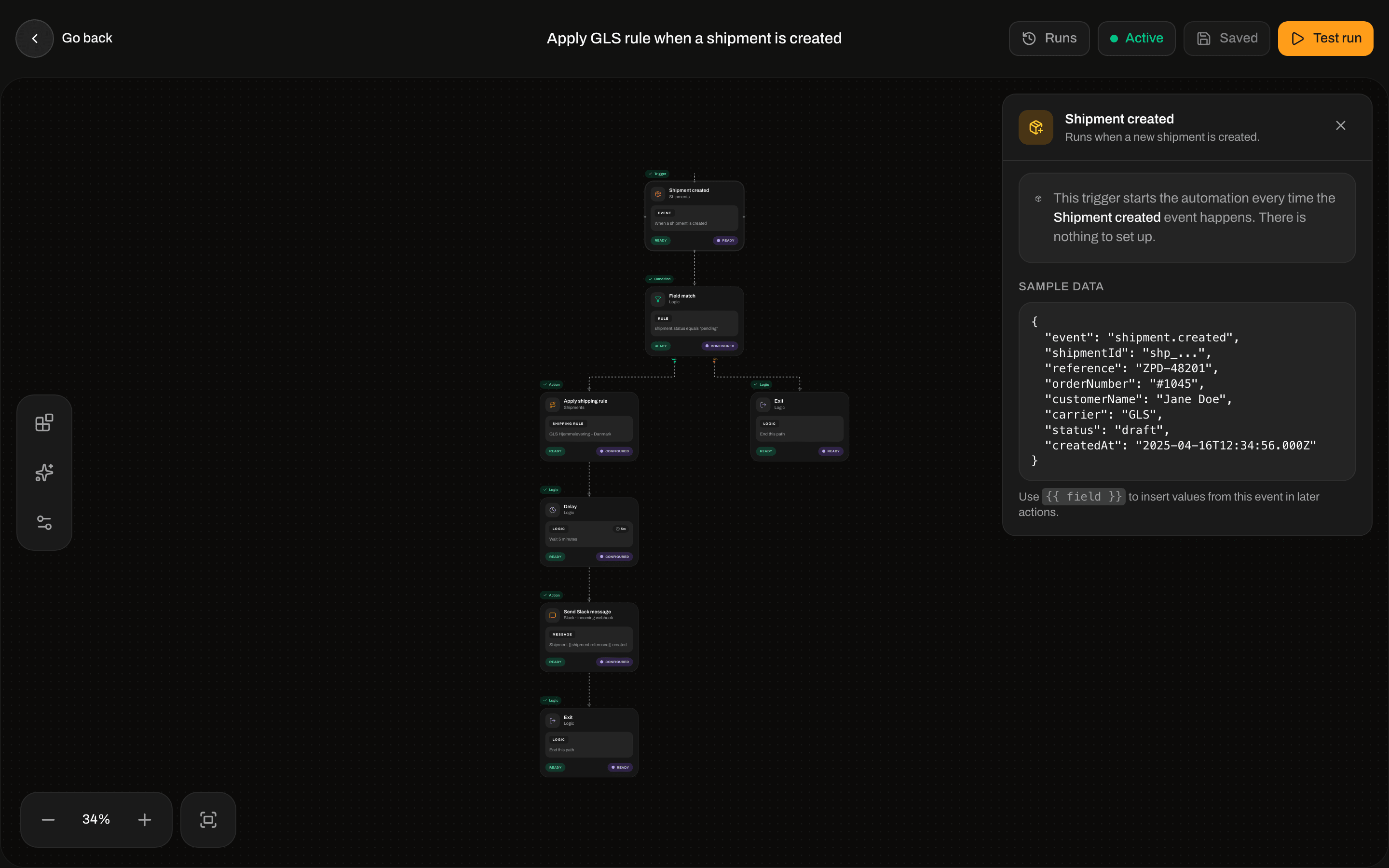

Shipment Created

Registry: Shipment Created — Fires when a new shipment is created. Category Shipments. Event shipment.created. Fires when you create a shipment (dashboard or API). Inspector sample: shipmentId, reference, orderNumber, customerName, carrier, status, createdAt. Live payload is { shipment: <shipment> }.

Shipment Dispatched

Registry: Shipment Dispatched — Fires when a shipment is dispatched. Canvas label on this node: Shipment dispatched / Zippendo · shipments. Event shipment.dispatched. Fires when a shipment is sent. Inspector sample: shipmentId, reference, orderNumber, customerName, trackingNumber, carrier, dispatchedAt. Live payload is { shipment: <shipment> }.

Shipment Cancelled

Registry: Shipment Cancelled — Fires when a shipment is cancelled. Event shipment.cancelled. Fires when a pending shipment is deleted (dashboard delete). It does not fire when the Cancel Shipment action sets status to cancelled. Inspector sample: shipmentId, reference, customerName, cancelledAt. Live payload: { shipment: { id, reference, status: "cancelled" } }.

Shipment Error

Registry: Shipment Error — Fires when a shipment encounters an error. Event shipment.error. Fires when send/booking fails. Inspector sample: shipmentId, reference, carrier, errorMessage, errorAt. Live payload also includes orderNumber, errorCode, and nested shipment.

Order Created

Registry: Order Created — Fires when a new order is created. Category Orders. Event order.created. Inspector sample: orderId, orderNumber, customerName, customerEmail, totalAmount, currency, createdAt. Live payload is { order: <order> }.

Order Updated

Registry: Order Updated — Fires when an order is updated. Event order.updated. Inspector sample: orderId, orderNumber, customerName, status, updatedAt. Live payload is { order: <order> }.

Tracking Updated

Registry: Tracking Updated — Fires when tracking information is updated. Category Tracking. Event tracking.updated. Fires on carrier tracking ingest. Inspector sample: shipmentId, reference, trackingNumber, carrier, trackingStatus, updatedAt. Live payload is already flat and also has trackingEvent.

Conditions

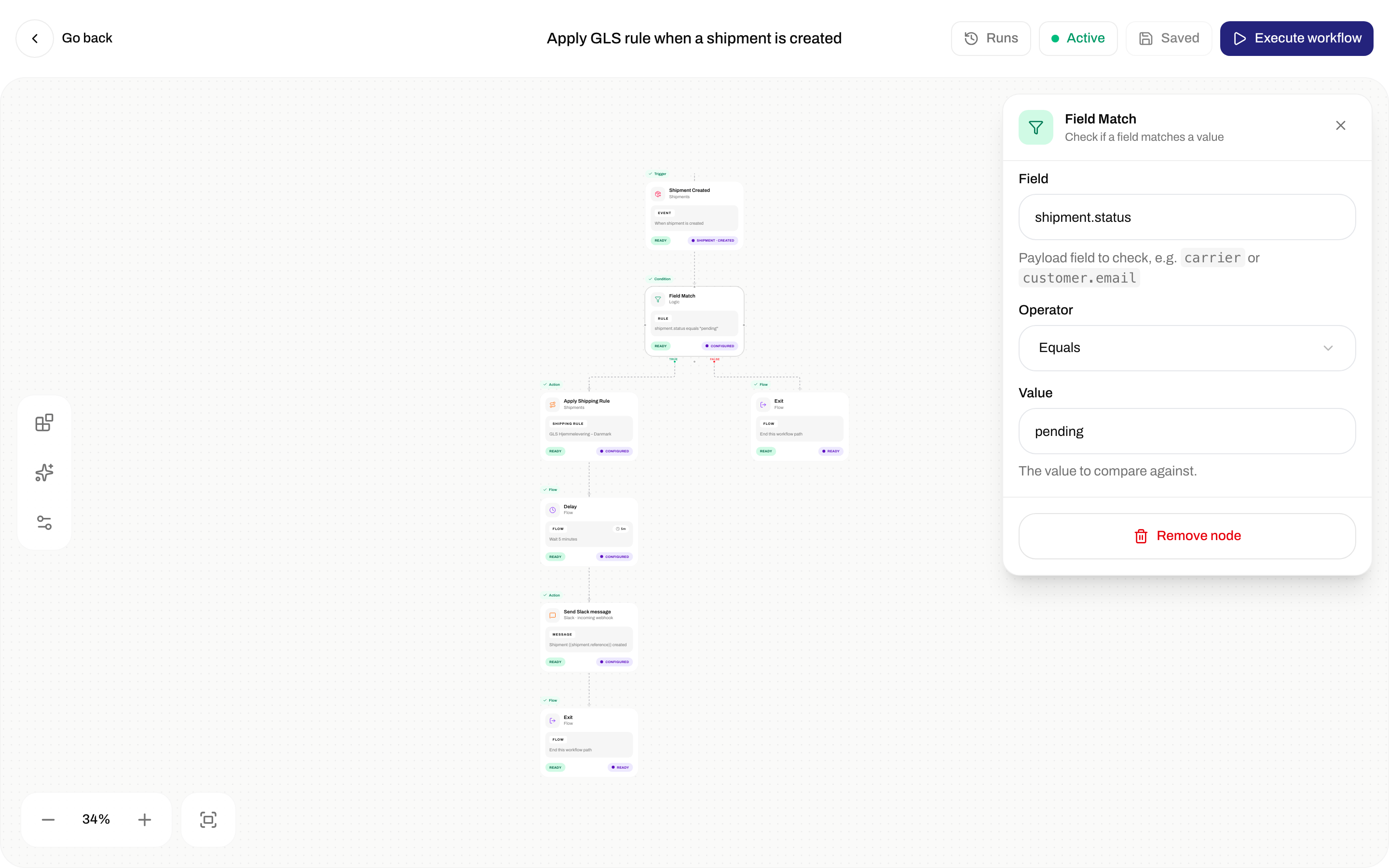

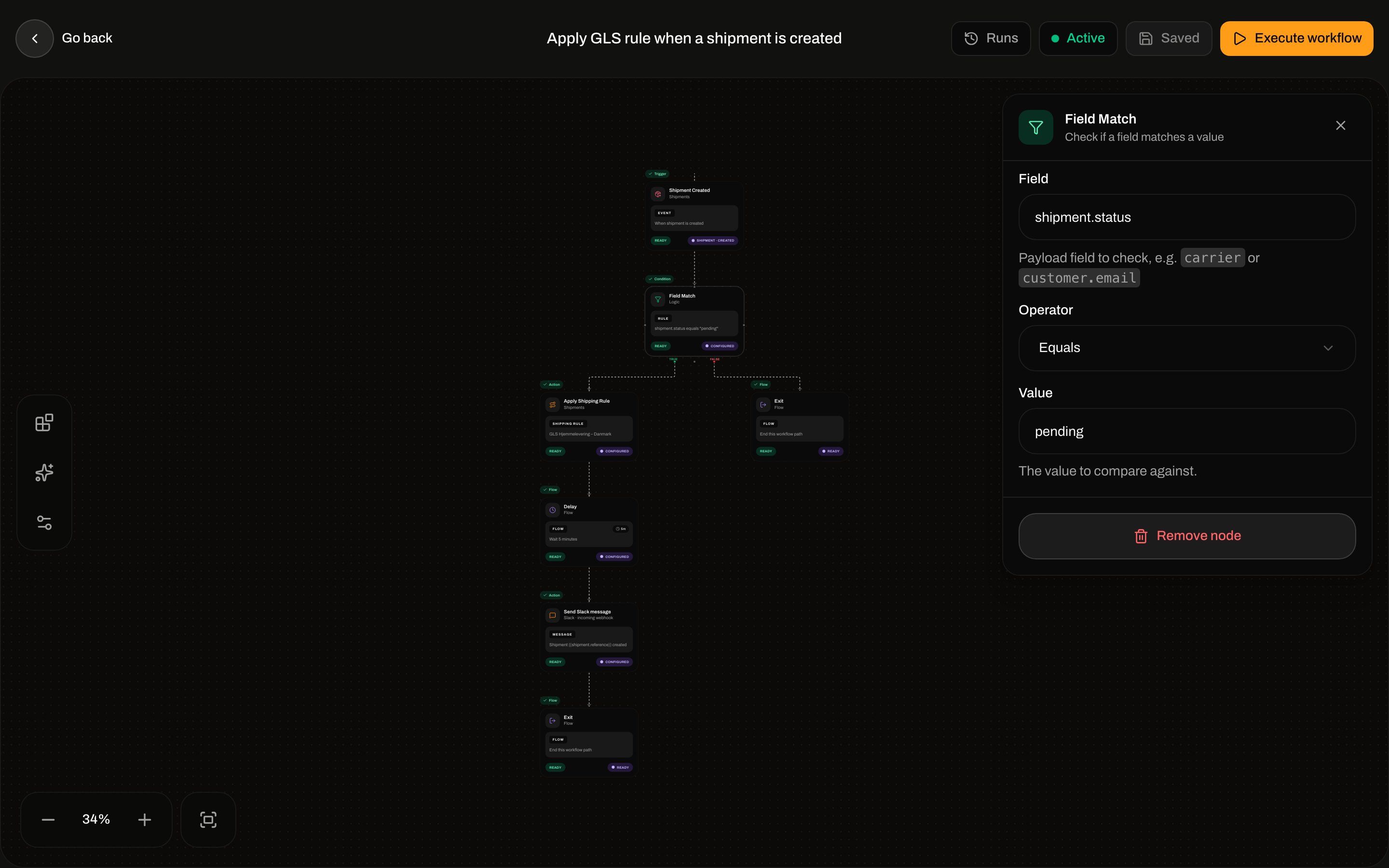

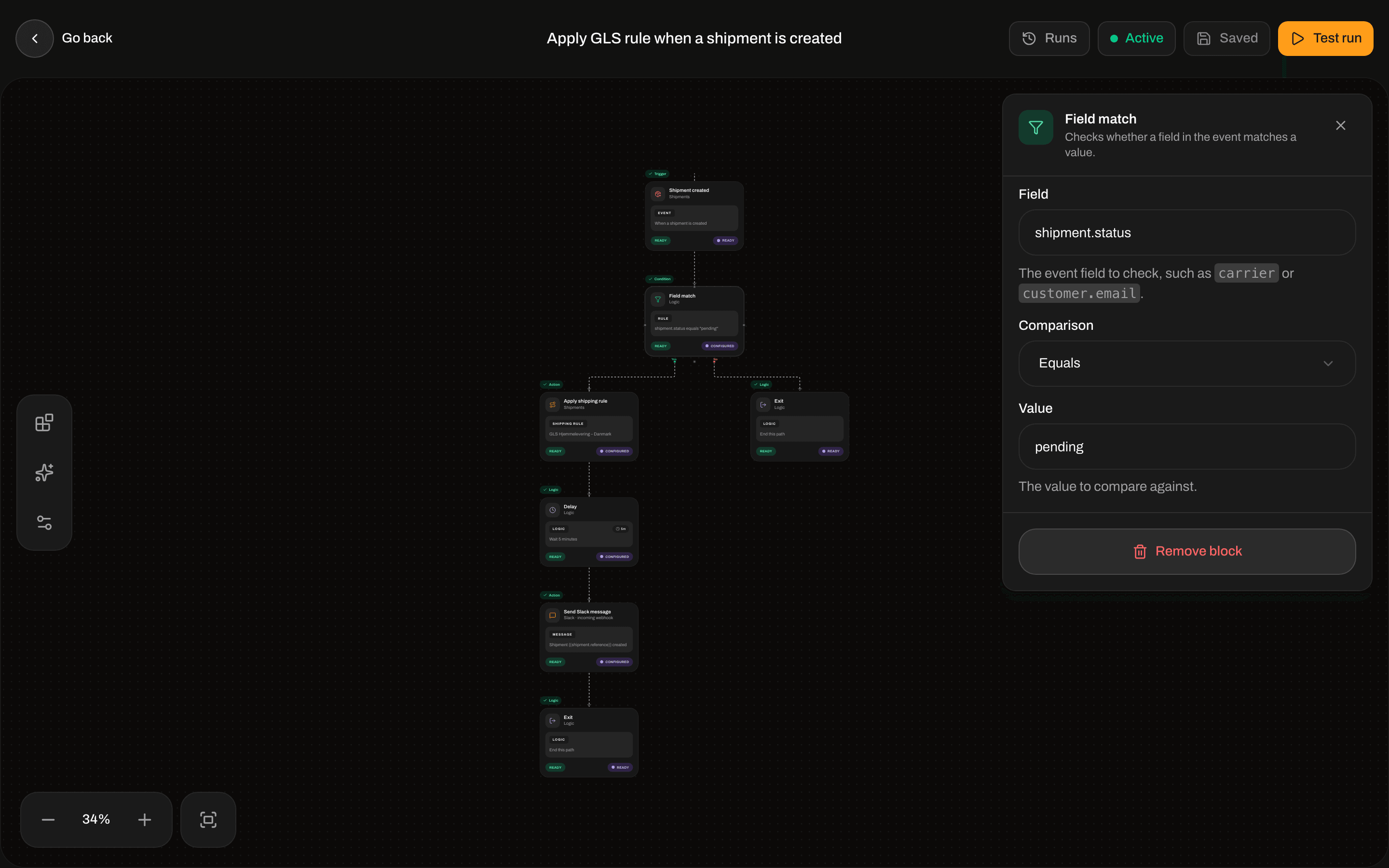

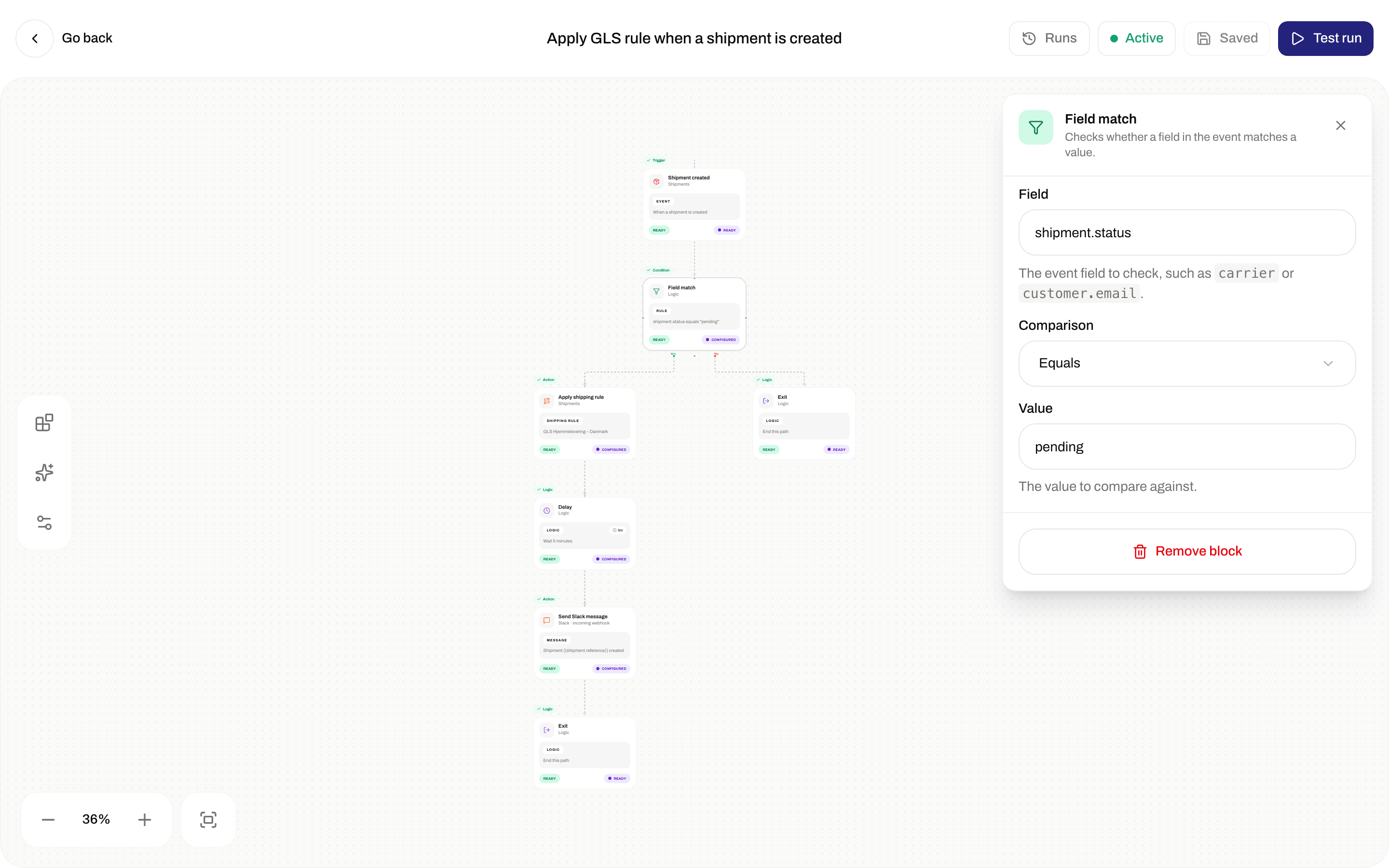

Field Match

Palette: Field Match — Check if a field matches a value. Category Logic. Handles TRUE / FALSE. Both must be connected.

Field	Required	Placeholder / helper
Field	Yes (Field is required)	carrier. Helper: Payload field to check, e.g. `carrier` or `customer.email`
Operator	Yes	See table below. Default Equals.
Value	No (empty string allowed)	PostNord. Helper: The value to compare against.

Operators (inspector label → stored value):

Inspector	Value
Equals	`eq`
Not equals	`neq`
Contains	`contains`
Does not contain	`not_contains`
Starts with	`starts_with`
Ends with	`ends_with`
Matches regex	`regex`
Greater than	`gt`
Less than	`lt`
Greater or equal	`gte`
Less or equal	`lte`

Comparisons stringify the field. Numeric operators coerce both sides with Number(...).

Flow

Branch

Palette: Branch — Split flow based on a condition. Same inspector as Field Match (Field, Operator, Value). Handles TRUE / FALSE. Both must be connected.

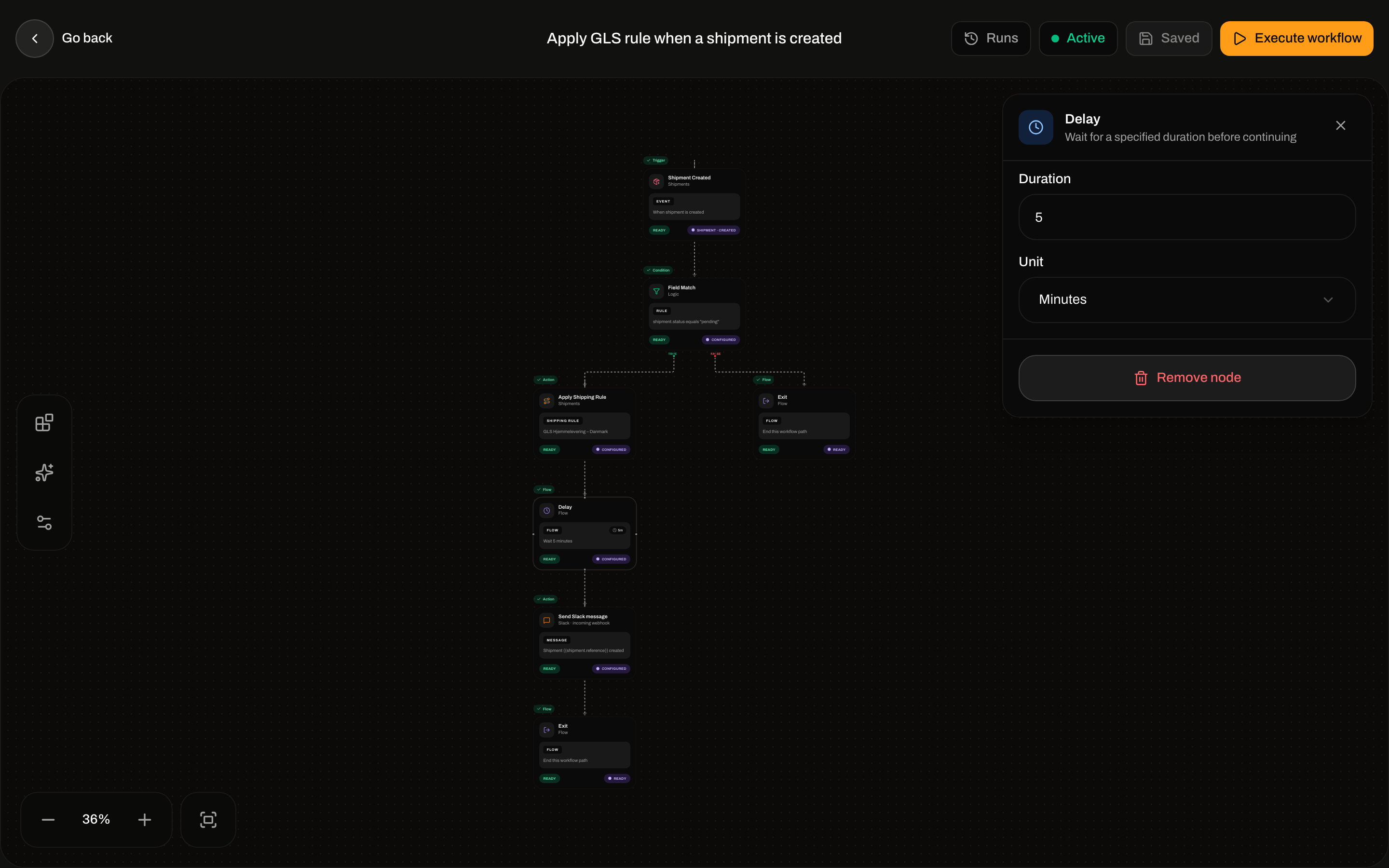

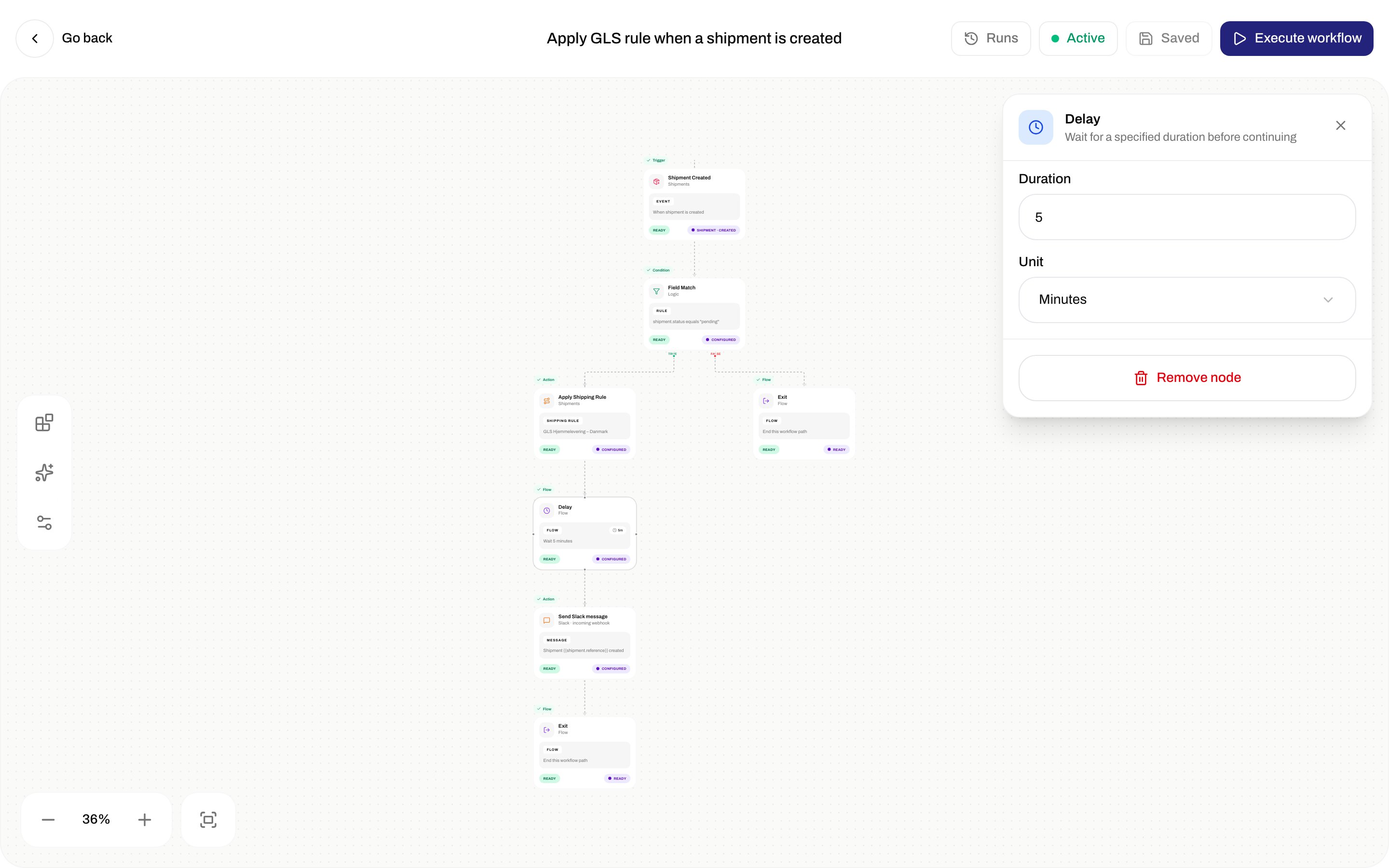

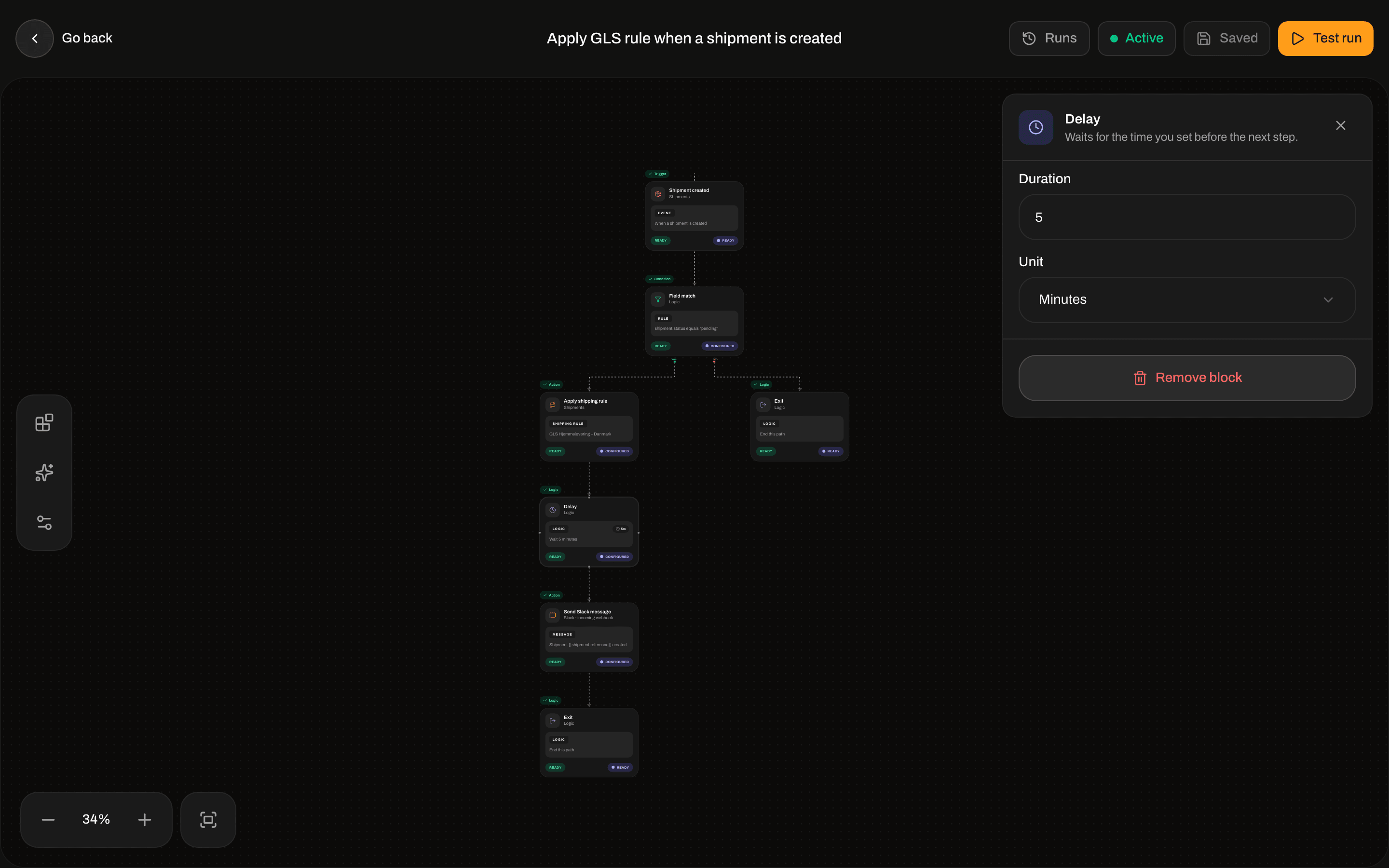

Delay

Palette: Delay — Wait for a specified duration before continuing. The run status becomes waiting until the delay elapses, then continues.

Field	Required	Options / validation
Duration	Yes	Integer ≥ 1. Placeholder 5. Error Duration must be at least 1. Inspector default 5 if unset.
Unit	Yes	Seconds, Minutes, Hours

Exit

Palette: Exit — Ends the workflow when this path is reached. No outgoing connector. Inspector: When execution reaches this node, the workflow path completes successfully. Connect all branches to an Exit before saving. At least one reachable Exit is required to save.

Actions

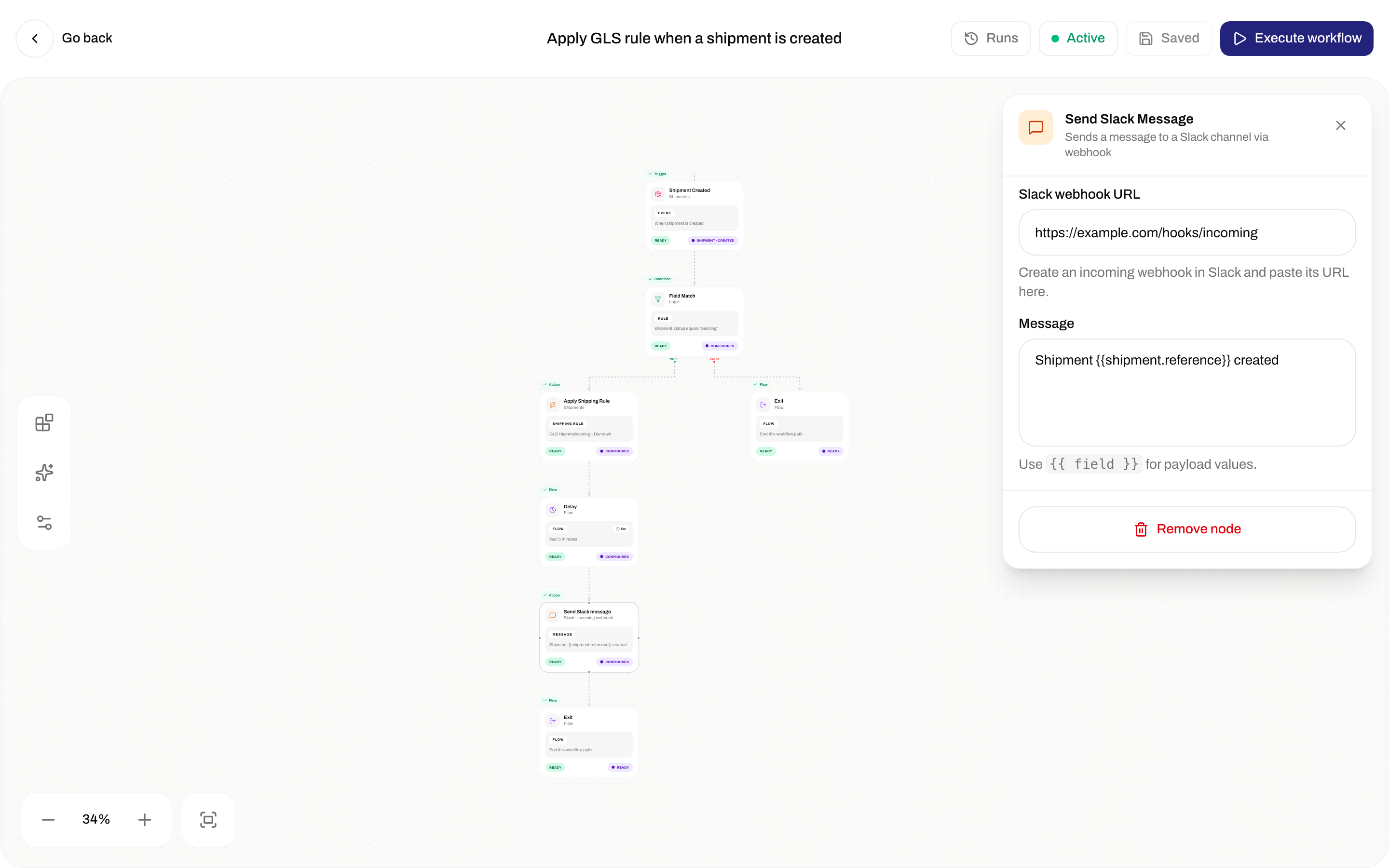

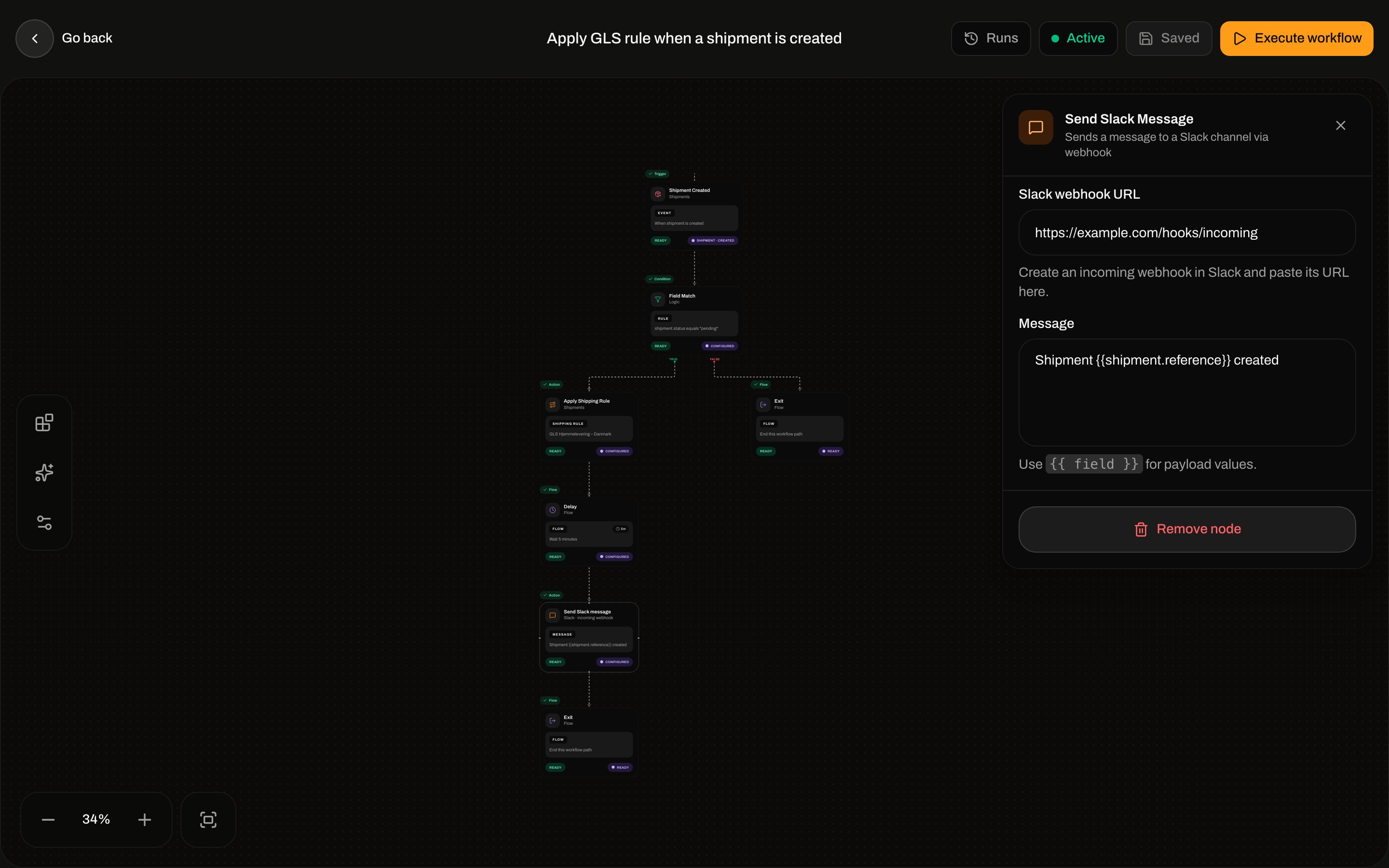

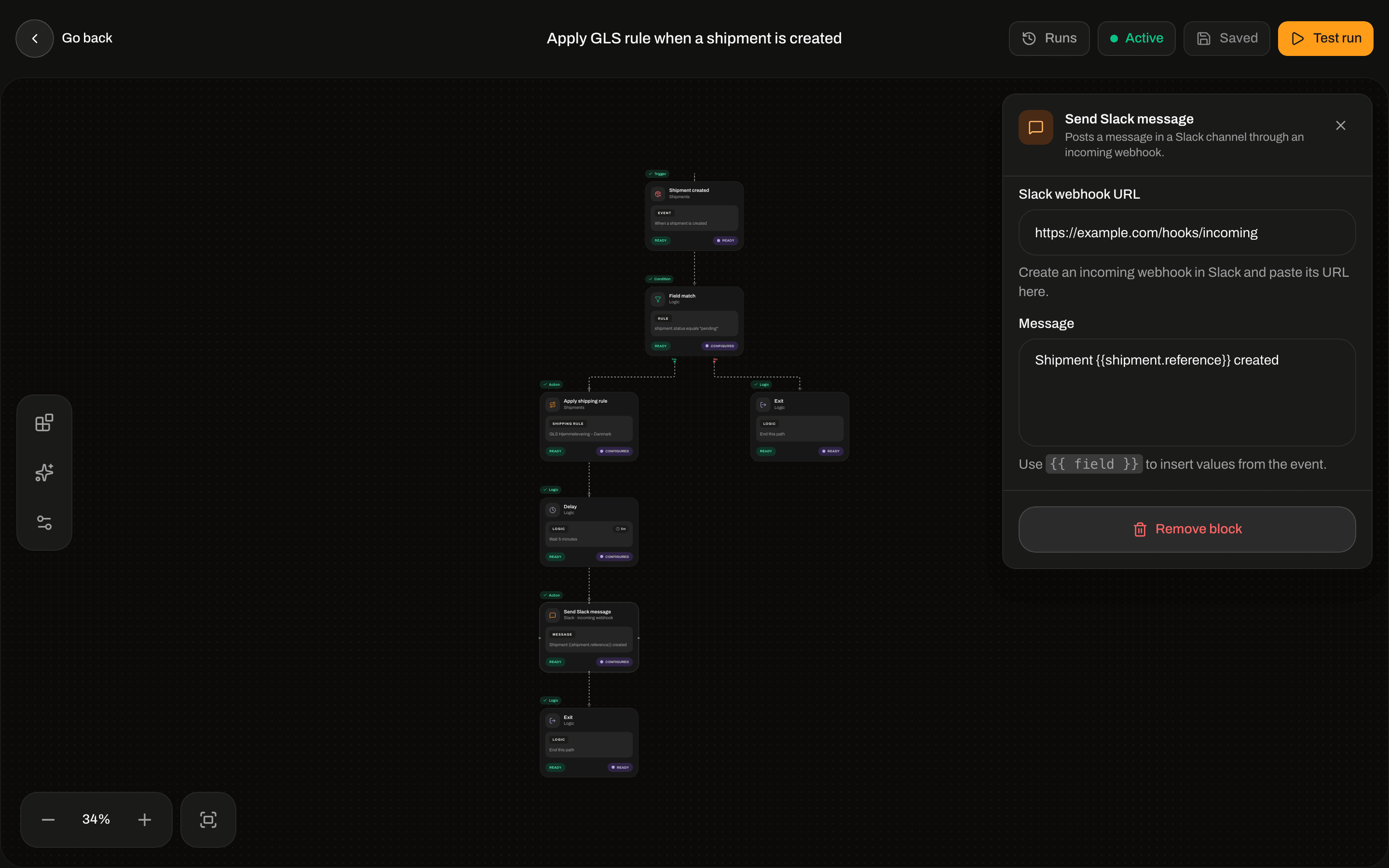

Send Slack Message

Palette: Send Slack Message — Sends a message to a Slack channel via webhook. Category Integrations. Canvas label: Send Slack message / Slack · incoming webhook. This is an incoming-webhook URL, not a connected Slack integration (that node is Send Slack Notification).

Field	Required	Placeholder / helper / validation
Slack webhook URL	Yes	https://hooks.slack.com/services/…. Helper: Create an incoming webhook in Slack and paste its URL here. Errors Webhook URL is required, Must be a valid URL.
Message	Yes	Shipment {{reference}} dispatched via {{carrier}}. Helper: Use `{{ field }}` for payload values. Max 2000. Error Message is required.

Send Webhook

Palette: Send Webhook — Sends an HTTP request to an external URL.

Field	Required	Placeholder / helper / validation
URL	Yes	https://api.example.com/webhook. URL is required, Must be a valid URL.
HTTP method	Yes	POST (default), PUT, PATCH
Body template	Yes	JSON body with `{{shipmentId}}` / `{{reference}}` tokens. Helper: JSON body to send. Use `{{ field }}` for payload values. Error Body template is required.

There is no inspector control for HTTP headers.

Update Shipment Reference

Palette: Update Shipment Reference — Updates the reference field on a shipment.

Field	Required	Placeholder / helper
Reference template	Yes	REF-{{orderNumber}}. Helper: The new reference value. Use {{field}} for payload data. Error Reference template is required.

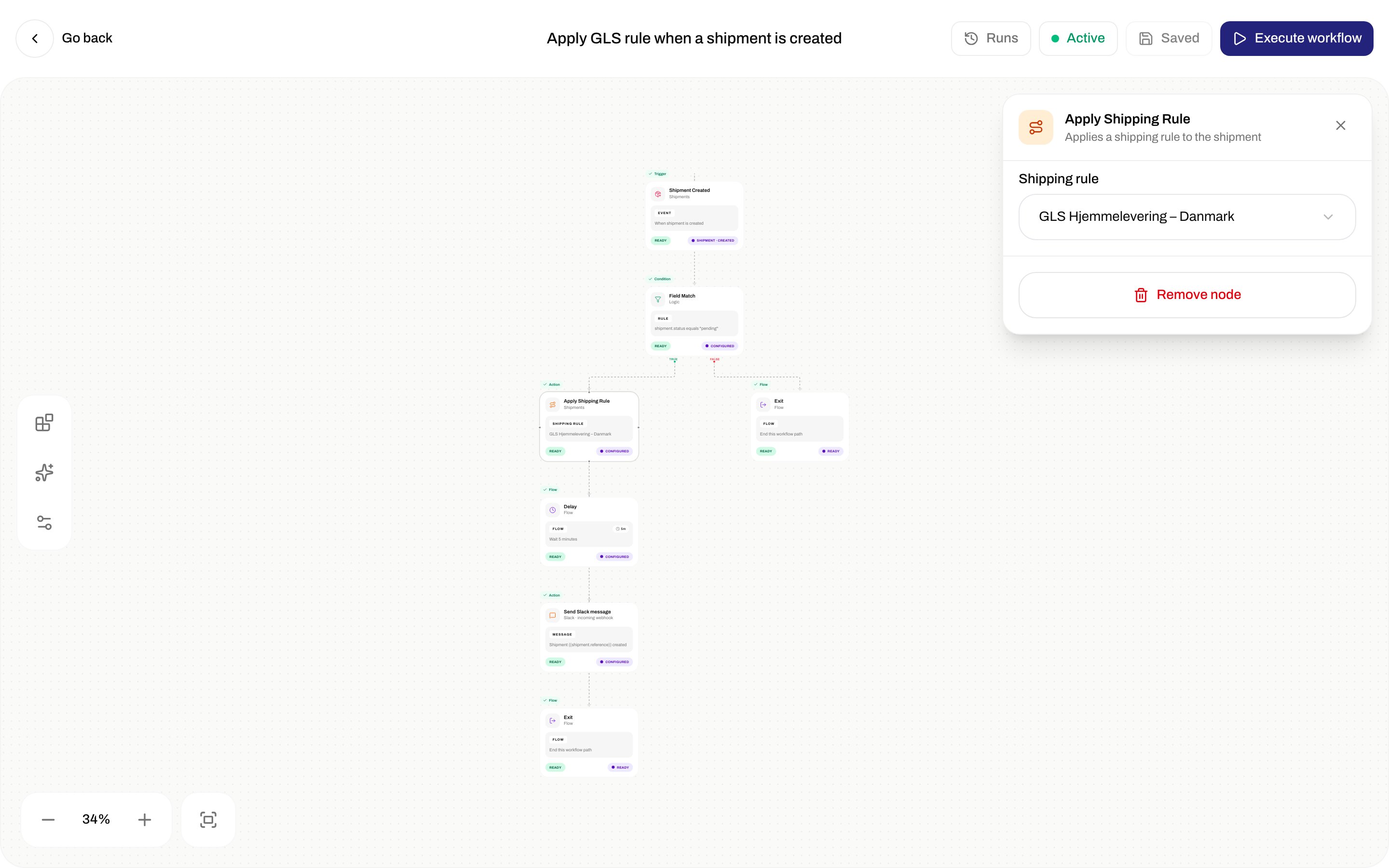

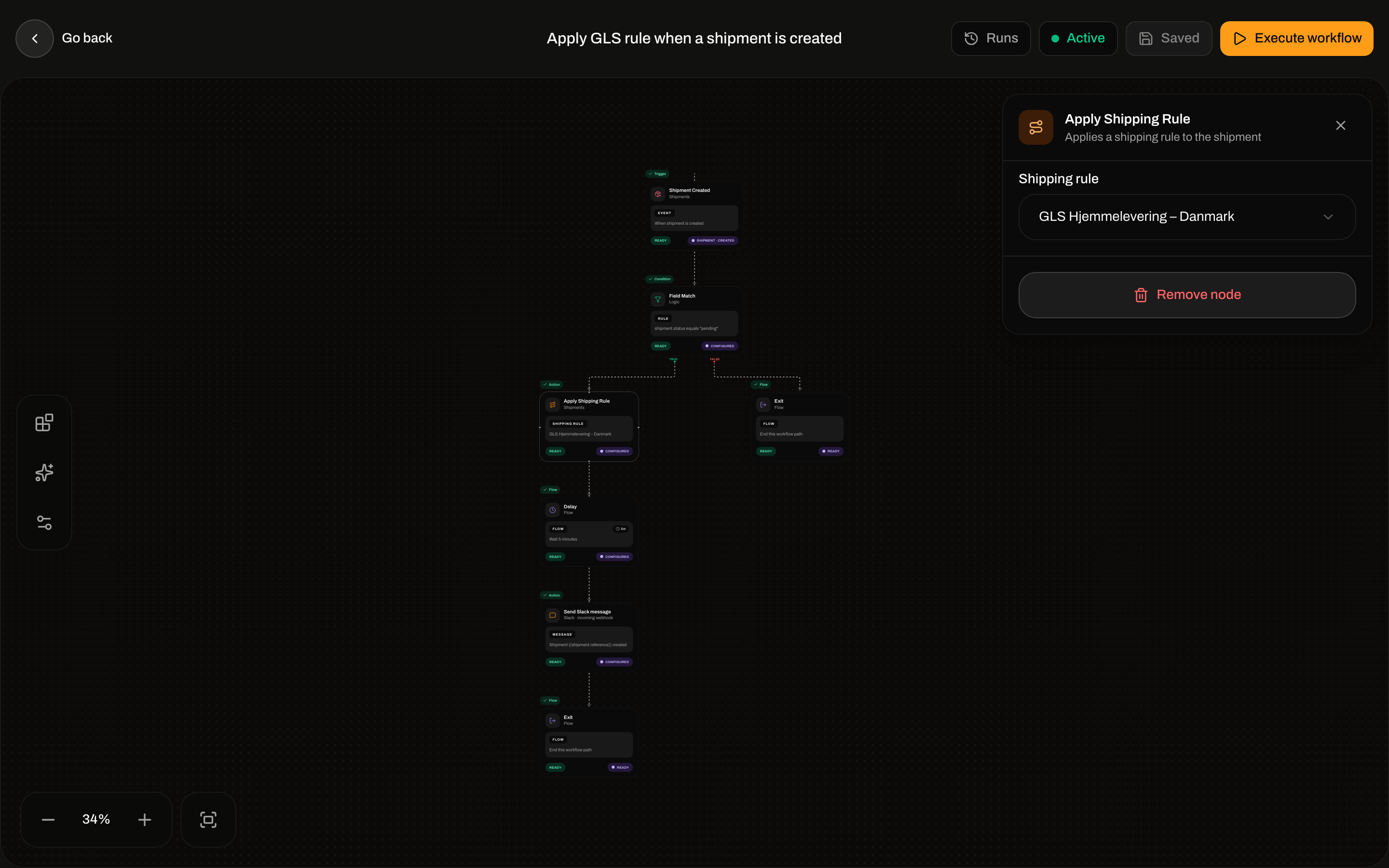

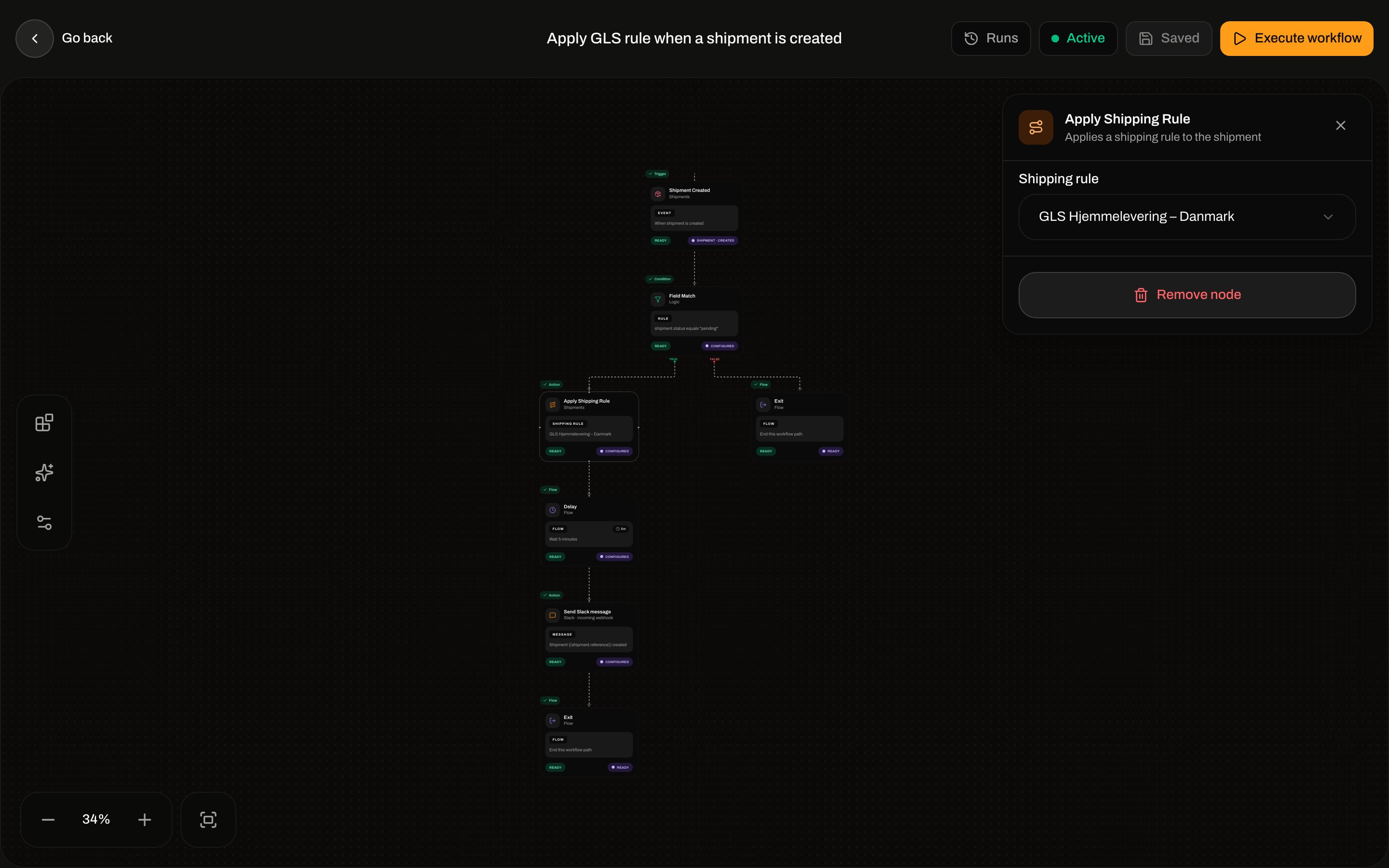

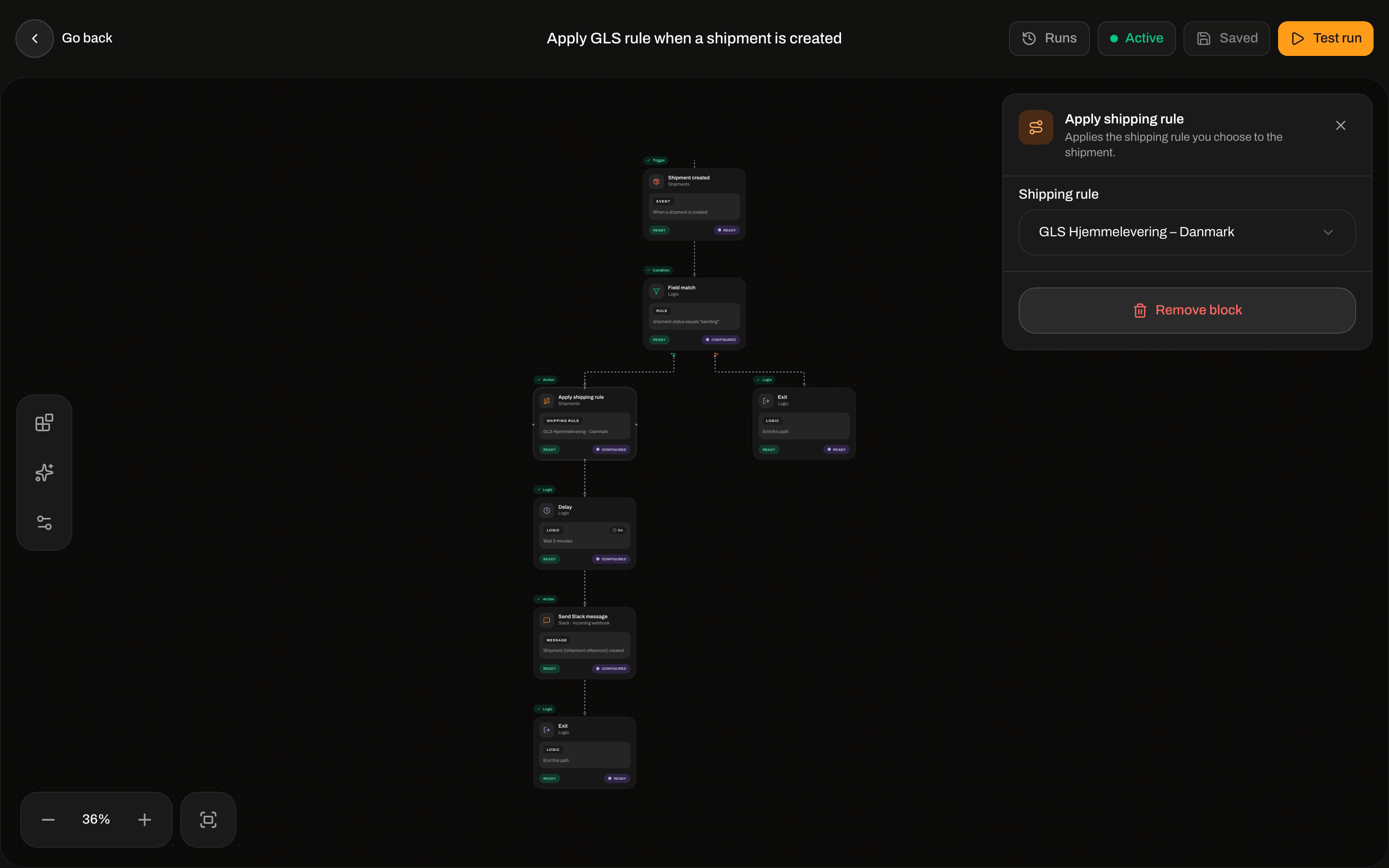

Apply Shipping Rule

Palette: Apply Shipping Rule — Applies a shipping rule to the shipment. Sets shippingRuleId on the shipment. It does not re-run checkout condition matching. Same apply as the order/shipment Configure modal — Apply a shipping rule. Field list for the rule itself: Shipping rule fields.

Field	Required	Placeholder / empty
Shipping rule	Yes (Shipping rule is required)	Select a shipping rule. Loading Loading…. Empty org: No items available.

Dispatch Shipment

Palette: Dispatch Shipment — Dispatches the shipment for delivery. No fields. Inspector: that description plus No additional configuration needed. Worker: pending or on-hold → dispatched. Already dispatched is a no-op. Other statuses fail. Related: Send a shipment.

Cancel Shipment

Palette: Cancel Shipment — Cancels the shipment. No fields. Worker sets status to cancelled. This does not emit shipment.cancelled (that event is delete-of-pending). Related: Hold, cancel, or delete a shipment.

Set Shipment On Hold

Palette: Set Shipment On Hold — Places the shipment on hold. No fields. Worker: pending → on_hold. Already on hold is a no-op. Other statuses fail.

Assign Carrier

Palette: Assign Carrier — Assigns a carrier to the shipment.

Field	Required	Placeholder
Carrier	Yes (Carrier is required)	Select a carrier

Writes carrierId into the shipment’s carrierSettings JSON. It does not pick a product, services, or additional parameters. Prefer Apply Shipping Rule when you need a full setup.

Print Shipping Label

Palette: Print Shipping Label — Prints the shipping label for the shipment. Category Printing.

Field	Required	Placeholder / helper
Label printer	No	Default printer. Helper: If empty, the org’s default label printer will be used. Only Active label printers. Allow empty: None (default).

Stub. The node is in the palette and inspector. Execution logs the print and returns. It does not enqueue a printer job. For print-on-send, use Auto-print on the shipping rule.

Print Document

Palette: Print Document — Prints a document for the shipment.

Field	Required	Options / helper
Document type	Yes	Proforma invoice (default), Commercial invoice, Packing list, CN22, CN23
Printer	No	Default printer. Helper: If empty, the org’s default document printer will be used. Active document printers. None (default).

Stub. Same as print-label: the node configures, execution does not send a print job.

Create Return Shipment

Palette: Create Return Shipment — Creates a return shipment. Dropdown lists inbound rules only.

Field	Required	Label / helper
Return shipping rule	No in the form (optional). Worker requires an id and fails with Missing shippingRuleId for return creation if empty.	Helper: The shipping rule to use for the return shipment. Placeholder None (default).

Queues a return with that inbound rule. Related: Inbound and returns, Returns.

Create Shipment from Order

Palette: Create Shipment from Order — Creates a new shipment from the order. Use on an Order Created / Order Updated path (needs orderId / order.id).

Field	Required	Label / helper
Shipping rule	No	Helper: Optional shipping rule to apply to the created shipment. Placeholder None (default).

Creates a pending outbound shipment (parties from sender address + order shipping address). It does not send the shipment.

Integration actions

These use a connected integration from Integrations. Connect first: Connect Slack, Klaviyo, and other apps. Dropdown lists active connections for that provider. Empty: No items available. Shared inspector:

Field	Who sees it	Required	Placeholder / helper
Connection	All	Yes (Connection is required)	Select a connection. Helper: Select an existing `{provider}` connection. Manage connections in Settings > Integrations. (Integrations is in the main sidebar, not Settings.)
Event name override	Klaviyo, Customer.io, Mailchimp only	No	e.g. Shipment Dispatched. Helper: Optional. Override the default event/metric name sent to the provider.
Custom properties	All	No	Add rows. Key placeholder key, value {{field}}. Helper: Add data to send with the event. Values support `{{field}}` interpolation from the trigger payload.

Palette name	Description
Send Klaviyo Event	Sends an event to Klaviyo via a connected integration
Send Slack Notification	Sends a formatted notification to Slack via a connected integration
Send Customer.io Event	Sends an event to Customer.io via a connected integration
Send Mailchimp Event	Sends an event to Mailchimp via a connected integration
Send SendGrid Email	Sends branded emails via SendGrid Dynamic Templates through a connected integration
Trigger Zapier Zap	Sends an event to Zapier via a connected integration
Trigger Make Scenario	Sends an event to Make.com via a connected integration

The event name sent to the provider is derived from the automation trigger (shipment.created, …) unless you override it on Klaviyo / Customer.io / Mailchimp.

Runs

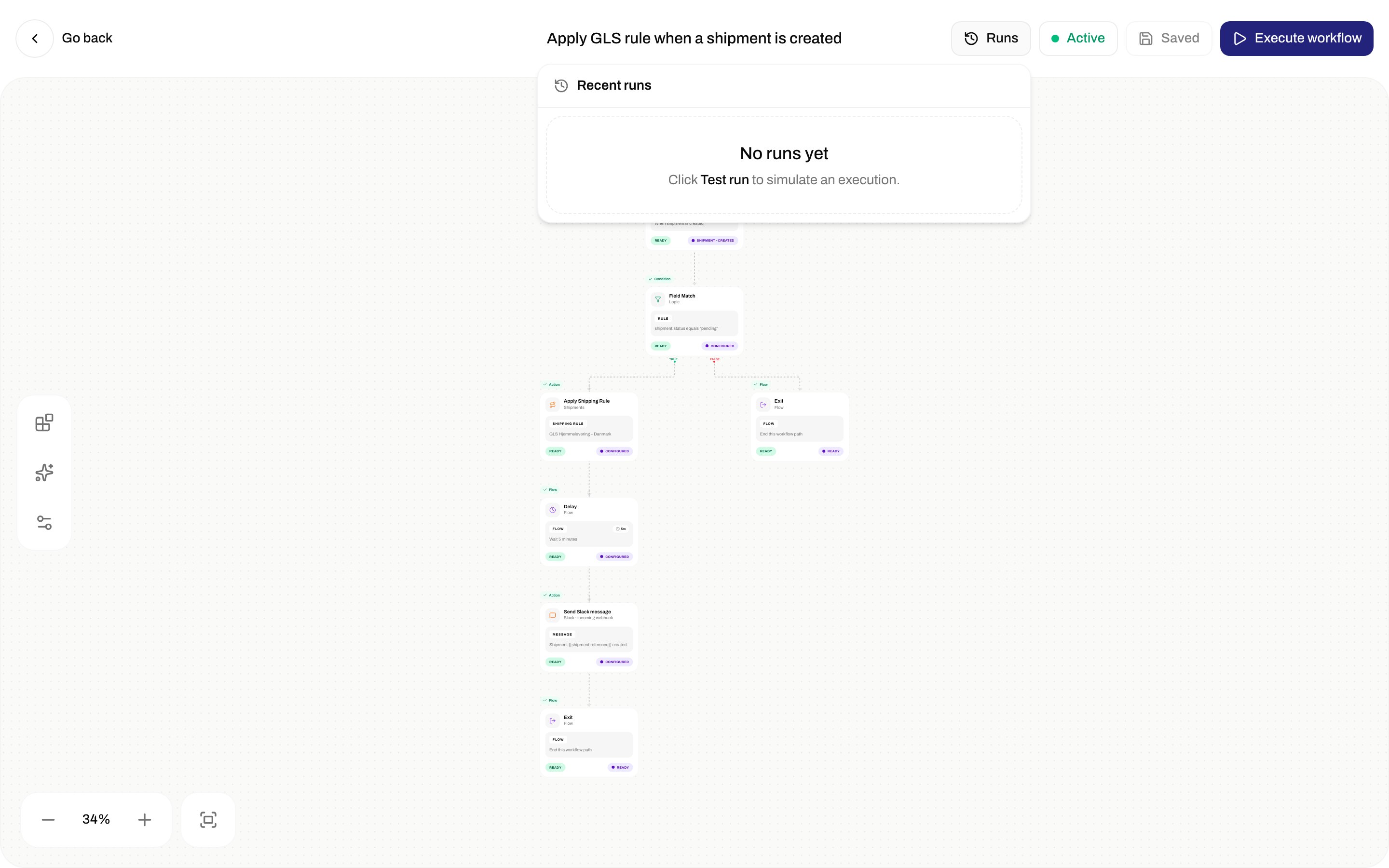

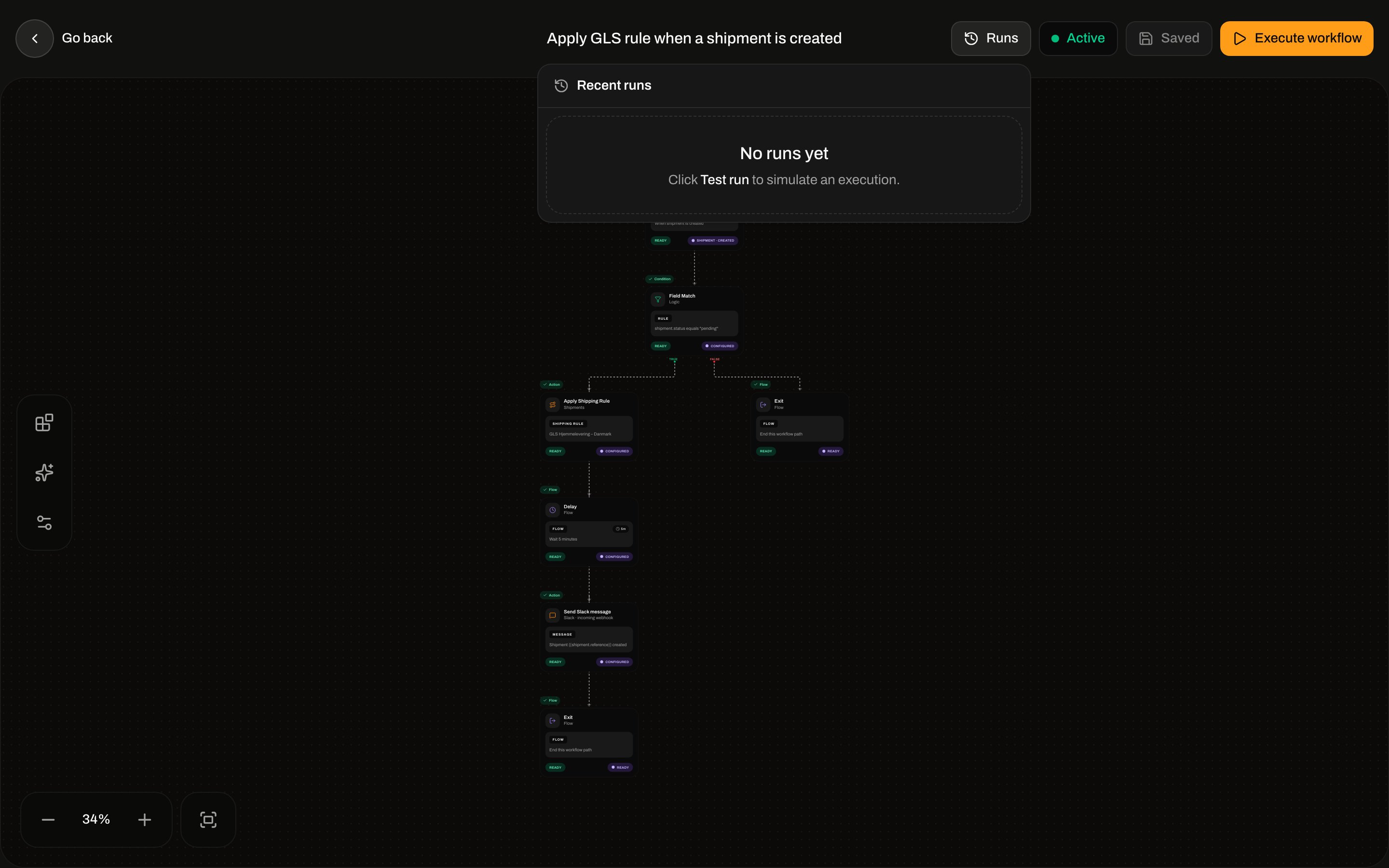

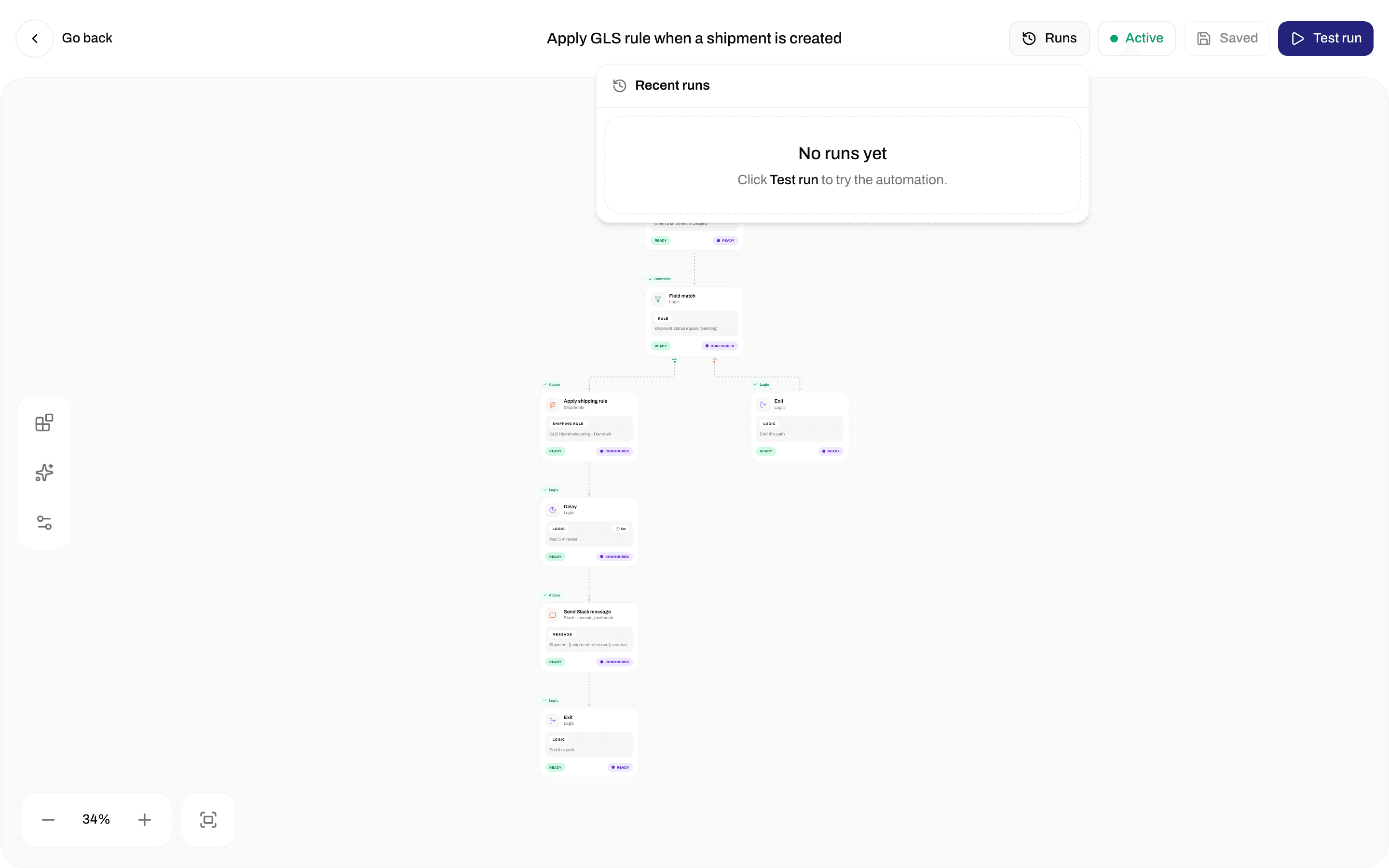

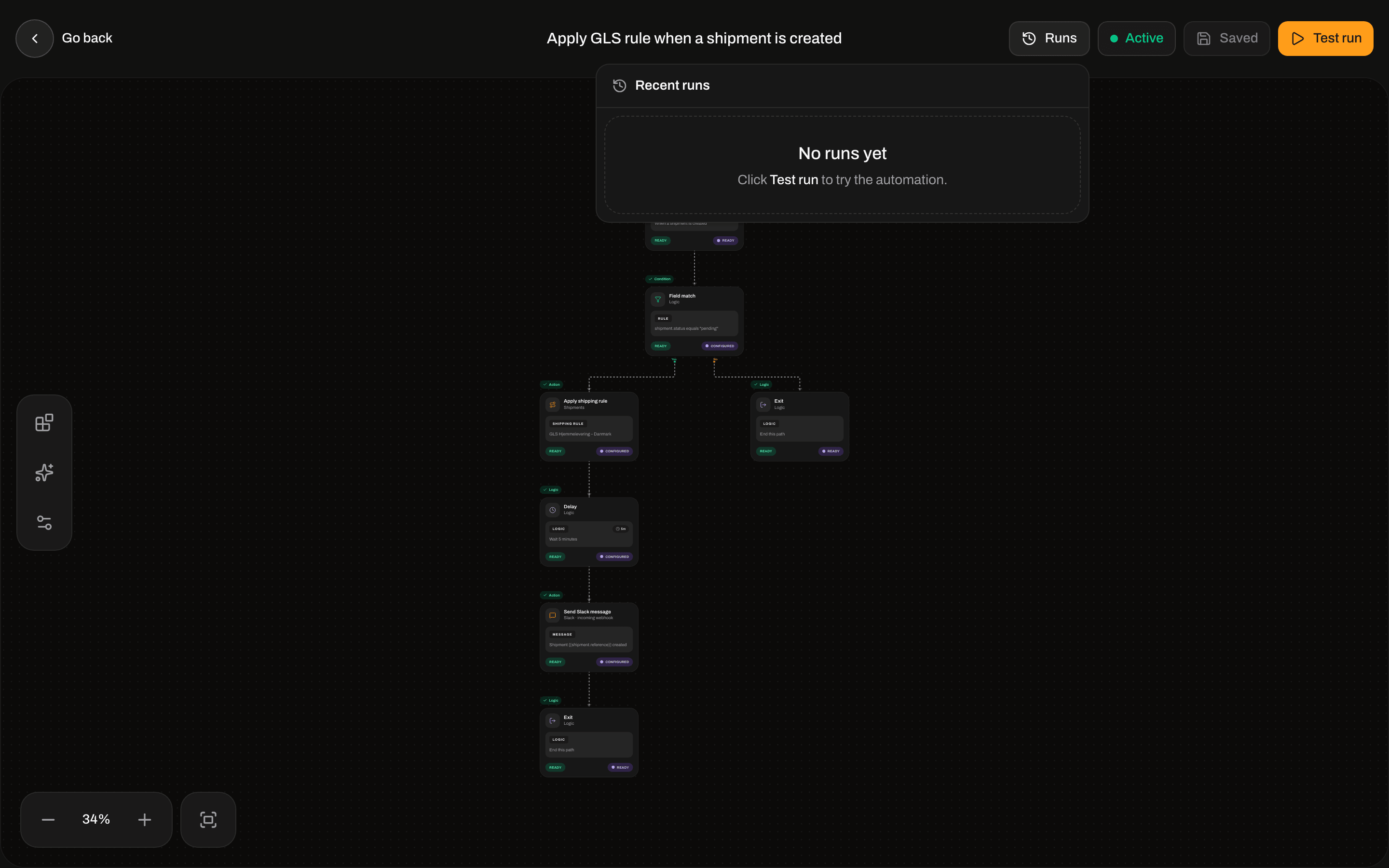

Runs in the top bar. Header Recent runs. Empty: No runs yet / Click Test run to simulate an execution. (The builder button is Execute workflow.)

A Test run / Execute workflow enqueues automations.execute with event: manual.test and {} as the payload. Shipment/order actions that need an id will fail on that empty payload. When a run exists, the row shows trigger event, relative time, N step(s), and duration. Expand for node logs. Node log statuses: success, failed, skipped. Run statuses the list styles: Running, Success, Failed. A delay puts the run in waiting until it resumes.

Errors the UI surfaces

Toast / code	When
Automation created / Failed to create automation	Create
Failed to save automation	Patch name/graph/status
Automation deleted / Failed to delete automation	Delete
Test run started / Test run failed	Test run
Can’t save — fix issues first / Can’t run — fix issues first	Client validation
AUTOMATION_NOT_FOUND	Automation not found.
AUTOMATION_INVALID	The automation configuration is invalid.
VALIDATION_FAILED	One or more fields are invalid. (activate/save graph)
RESOURCE_LIMIT_REACHED	You have reached your plan limit for this resource.
BAD_REQUEST	Empty graph test run

Journey: Shipping rules · Returns
Shipping rule fields · Apply a shipping rule · Auto-print
Inbound and returns · Hold, cancel, or delete a shipment · Send a shipment
Connect Slack, Klaviyo, and other apps · Schedule a pickup
Search and filters · Create a brand · Billing and usage
Automations overview · Building an automation · Runs and debugging
Automation not triggering

​Where it lives

​List

​Columns

​Filters

​Empty state

​Row menu

​Create

​Enable, pause, and rename

​Delete

​Builder

​Top bar

​Left rail

​Canvas settings

​Elements palette

​Validation (blocks save, activate, and Execute workflow)

​Templates

​Triggers

​Shipment Created

​Shipment Dispatched

​Shipment Cancelled

​Shipment Error

​Order Created

​Order Updated

​Tracking Updated

​Conditions

​Field Match

​Flow

​Branch

​Delay

​Exit

​Actions

​Send Slack Message

​Send Webhook

​Update Shipment Reference

​Apply Shipping Rule

​Dispatch Shipment

​Cancel Shipment

​Set Shipment On Hold

​Assign Carrier

​Print Shipping Label

​Print Document

​Create Return Shipment

​Create Shipment from Order

​Integration actions

​Runs

​Errors the UI surfaces

​Related

Where it lives

List

Columns

Filters

Empty state

Row menu

Create

Enable, pause, and rename

Delete

Builder

Top bar

Left rail

Canvas settings

Elements palette

Validation (blocks save, activate, and Execute workflow)

Templates

Triggers

Shipment Created

Shipment Dispatched

Shipment Cancelled

Shipment Error

Order Created

Order Updated

Tracking Updated

Conditions

Field Match

Flow

Branch

Delay

Exit

Actions

Send Slack Message

Send Webhook

Update Shipment Reference

Apply Shipping Rule

Dispatch Shipment

Cancel Shipment

Set Shipment On Hold

Assign Carrier

Print Shipping Label

Print Document

Create Return Shipment

Create Shipment from Order

Integration actions

Runs

Errors the UI surfaces

Related
